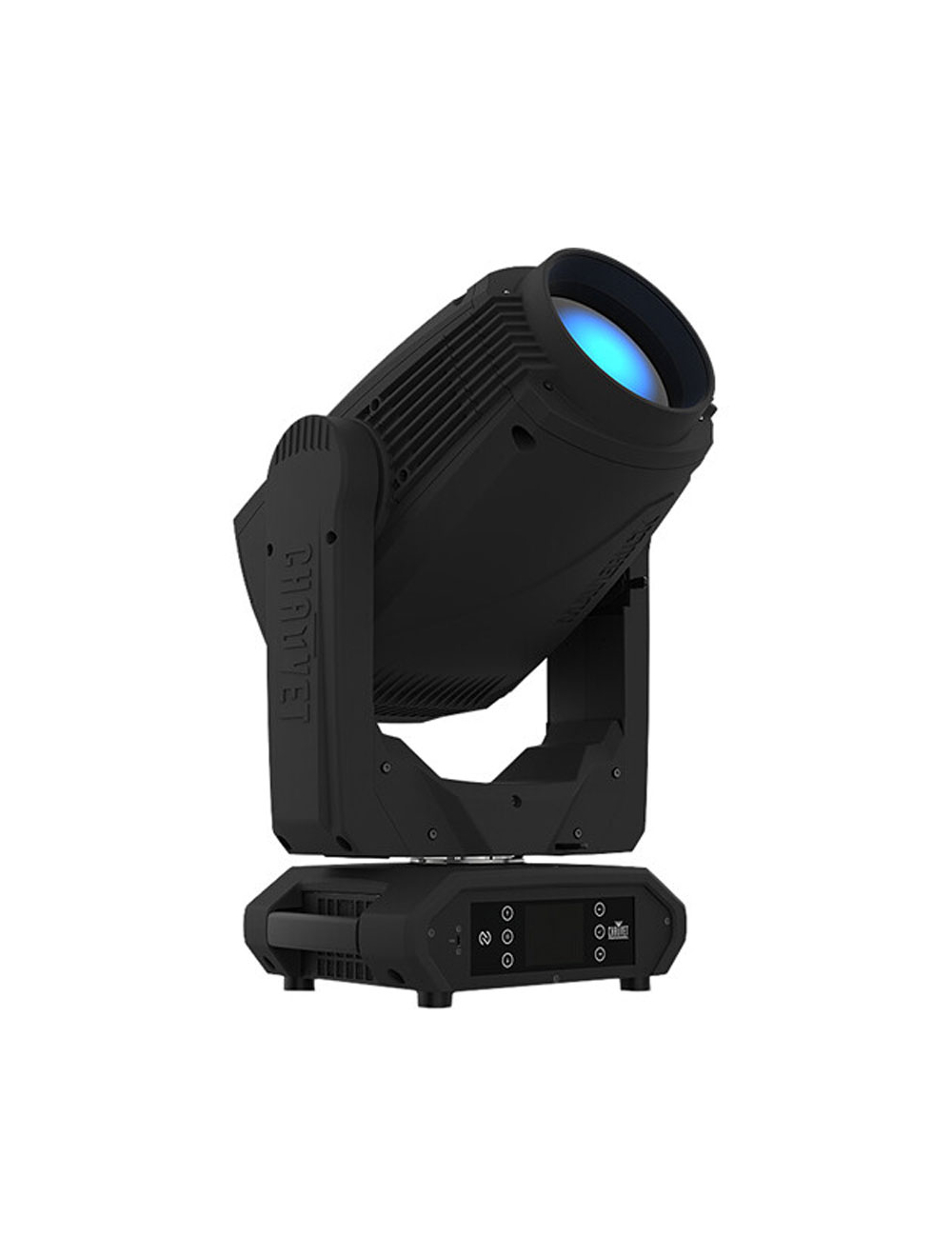

Chauvet Pro MAVERICKFORCEXSPOT Maverick Force X Spot 520 Watt 100-240 Volt Compact Moving Head Fixture with Multi Color LED Temperature

Highlights
• Fully featured, compact, and lightweight 520W LED yoke spot fixture including CMY color mixing, a color wheel, zoom optics, and two gobo wheels: one rotating, and one static
• 16-bit dimming of the master dimmer for smooth control of fades
• 65,000 PWM for use with the fastest frame cameras, but still maintains fantastic dimming
• Variable CMY color mixing system to create a wide palette of colors
• DMX, CRMX, sACN, and Art-Net for full flexibility of control options
• RDM-enabled for remote addressing and troubleshooting
• 3.5 to 57.7° zoom range for variable beam sizes
• Iris, 5-facet prism, and frost for beam control
• True-1 compatible power input
• Three setup menu presets and preset sync for cross-loading to multiple like fixtures for easy shop setup
• USB slot for software uploads
• Battery backup display with auto-rotate depending on fixture orientation
• Failsafe Ethernet connectivity allows data to pass even if fixture power is lost
• NFC for quick/easy fixture setup in the shop or in the field

Specifications
• Fixture Type: Moving Head
• Light Source: White LED
• Colors: CTB (Color Temperature Blue), CTO (Color Temperature Orange), HCRI (High CRI), Magenta, Orange, Red
• Beam Angle: 3.5 to 51.3°
• Control Protocols: DMX512, CRMX, RDM, Art-Net, sACN
• AC Input Power: 100 to 240 VAC, 50/60 Hz
• Power / Current Consumption: 120 VAC, 60 Hz: 554 W / 4.64 A
208 VAC, 60 Hz: 541 W / 2.63 A
230 VAC, 50 Hz: 542 W / 2.44 A
• Mounting: Floor Base, Omega Bracket

Light
• Fixture Type: Moving Head
• Light Source: 1x White LED - 520 W / 4.2 A
• Expected Lamp Life: 50,000 Hours
• Colors: CTB (Color Temperature Blue), CTO (Color Temperature Orange), HCRI (High CRI), Magenta, Orange, Red
• Photometrics: 51.3°:
2635 fc / 28,364 Lux at 3.3' / 1 m
292 fc / 3152 Lux at 9.8' / 3 m
105 fc / 1135 Lux at 16.4' / 5 m
3.5°:
216,187 fc / 2,327,104 Lux at 3.3' / 1 m
24,020 fc / 258,567 Lux at 9.8' / 3 m
8647 fc / 93,084 Lux at 16.4' / 5 m
• Color Temperature: 6462K
• Lumen Output : 17,325 Lumens (Output)
• Beam Angle: 3.5 to 51.3°
• Field Angle: 3.7 to 56.3°
• Shutter / Strobe: Electronic
• Iris: Yes
• Focus: Motorized
• Zoom Adjustment: Motorized, 3.5 to 57.7°
• Dimming: Electronic, 0 to 100%
• Prism: 5-Facet (Rotating)

Performance
• Operating Modes: DMX
• Strobe Rate: 0 to 25 Hz
• Gobos: 9x Metal Gobo
1x Removable Metal Gobo
6x Removable Glass Gobo
2x Spot/Open
• Gobo Size: Outer Diameter: 0.9" / 24 mm
Max Image Size: 0.6" / 14 mm
Max Thickness: 0.04" / 1.1 mm
• Color Accuracy Index: CRI: 72.2
HCRI: 90

Movement
• Tilt Ranges: 180° / 270° / 90°
• Pan Ranges: 540° / 360° / 180°
• Pan/Tilt Inversion: Yes

Control
• Control Protocols: DMX512, CRMX, RDM, Art-Net, sACN
• DMX Channel Modes: 2 Mode(s): 22 / 29-Channel
• Display / Controls: LCD / 6-Button
• Remote Control: No`
• Mobile App Compatible: No

Connectivity
• Inputs/Outputs: 1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
2 x etherCON/RJ45 Network Input/Output
• Wireless: Wireless DMX
• Wireless Range: 984.3' / 300 m

Power
• AC Input Power: 100 to 240 VAC, 50/60 Hz
• AC Power Connector: Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated
• Fuse: F 10 A 250 V
• Power / Current Consumption: 120 VAC, 60 Hz: 554 W / 4.64 A
208 VAC, 60 Hz: 541 W / 2.63 A
230 VAC, 50 Hz: 542 W / 2.44 A
• Power Linking: 2 Units at 120 VAC
4 Units at 208 VAC
5 Units at 230 VAC
• Battery Type: 3.7 V Lithium-Ion
• Battery Capacity: 500 mAh
• Approximate Battery Life: Up to 1 Hours
• Battery Charging Time : Hours

Physical
• Environmental Resistance: Dust-Resistant (IP20)
• Operating Conditions: -4 to 113°F / -20 to 45°C
• Mounting: Floor Base, Omega Bracket
• Included Accessories: 1x Power Cable
• Duty Cycle: No
• Exterior Color: Black
• Cooling: Fan
• Certifications: CE, FCC, MET, UKCA
• Dimensions: 25.43 x 14.21 x 9.4" / 645.92 x 360.93 x 238.8 mm
• Weight : 44.2 lb / 20 kg
