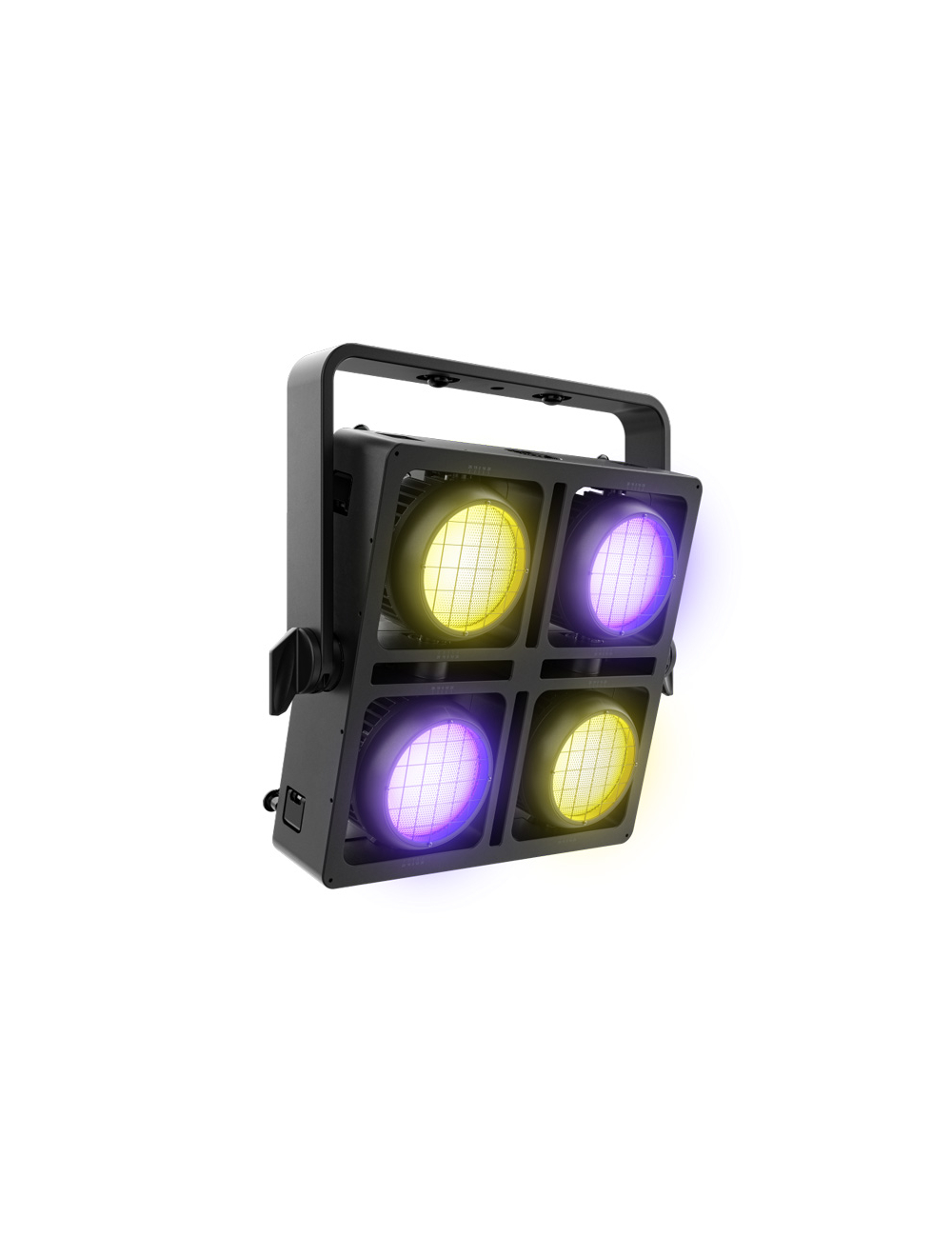

Chauvet STRIKEARRAY4C 255 Watt 100-240 Volt Intense 4 pod Blinder/Strobe

AT A GLANCE
• Intense 4 pod color blinder/strobe rated IP65 for all-weather use
• Full range of color and excellent rendition of any color temperature of white
• Emulated “red shift” to mimic incandescent fixtures perfectly.
• Individual pan (or tilt depending on mount orientation) of each head to allow for directional adjustment of light output.
• Innovative interlocking system to connect multiple STRIKE Array family fixtures together.
• Multiple mounting locations and repositionable yoke with ¼ turn adaptors for creative and convenient rigging options
• Independent pod control and strobe functionality for high-impact effects on the fly
• Ultra-smooth 18-bit dimming curves and speeds to complement any lighting scheme.

SPECIFICATIONS
OPTICAL
• Light Source: 268 LEDs (112 quad-color RGBA, 156 WW), 2.7W to 4.32 W, (871 mA), 50,000 hours life expectancy.
• Color Temperature (range): 2800 to 6500 K
• Color Temperature (at full): 5991 K
• CRI (@3200K): 94.6
• Beam Angle: 59.6°
• Field Angle: 102.2°
• Lumens: 53,481
• Illuminance: 1979 lux @ 5 m
• Selectable PWM: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 25000Hz

DYNAMIC EFFECTS
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL
• Dimensions: 19.17 x 16.70 x 6.45 in (487.02 x 424.21 x 163.84 mm)
• Weight: 34.4 lb (15.4 kg)
• Exterior Color: Black
• Housing Material: Magnesium alloy

CONNECTIONS
• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin Seetronic IP65 XLR or Seetronic IP65 etherCON
• Cable Length (power): 5 ft (1.5 m)
• Software Update: USB-C

CONTROL
• Control Protocol: Art-Net, sACN, DMX ,RDM
• Modes/Personalities: 10 personalities (1, 3, 5, 7, 10, 12, 13, 16, 22 or HSV)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 1180 W, 9.92 A @ 120 V, 60 Hz
• Power and Current: 1150 W, 5.60 A @ 208 V, 60 Hz
• Power and Current: 1140 W, 5.02 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, FCC, ETL, cULus,
• IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
• STRIKE Array 4C
• Seetronic Powerkon IP65
• Omega bracket with mounting hardware

OPTIONAL ACCESSORIES
• STRIKE Array Flush Bracket
• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-08
• IP Rated Seetronic® Powerkon Extensions
• IP Rated DMX cables
• IP Rated EtherCon Cables
• UPLOAD 03 software uploader
