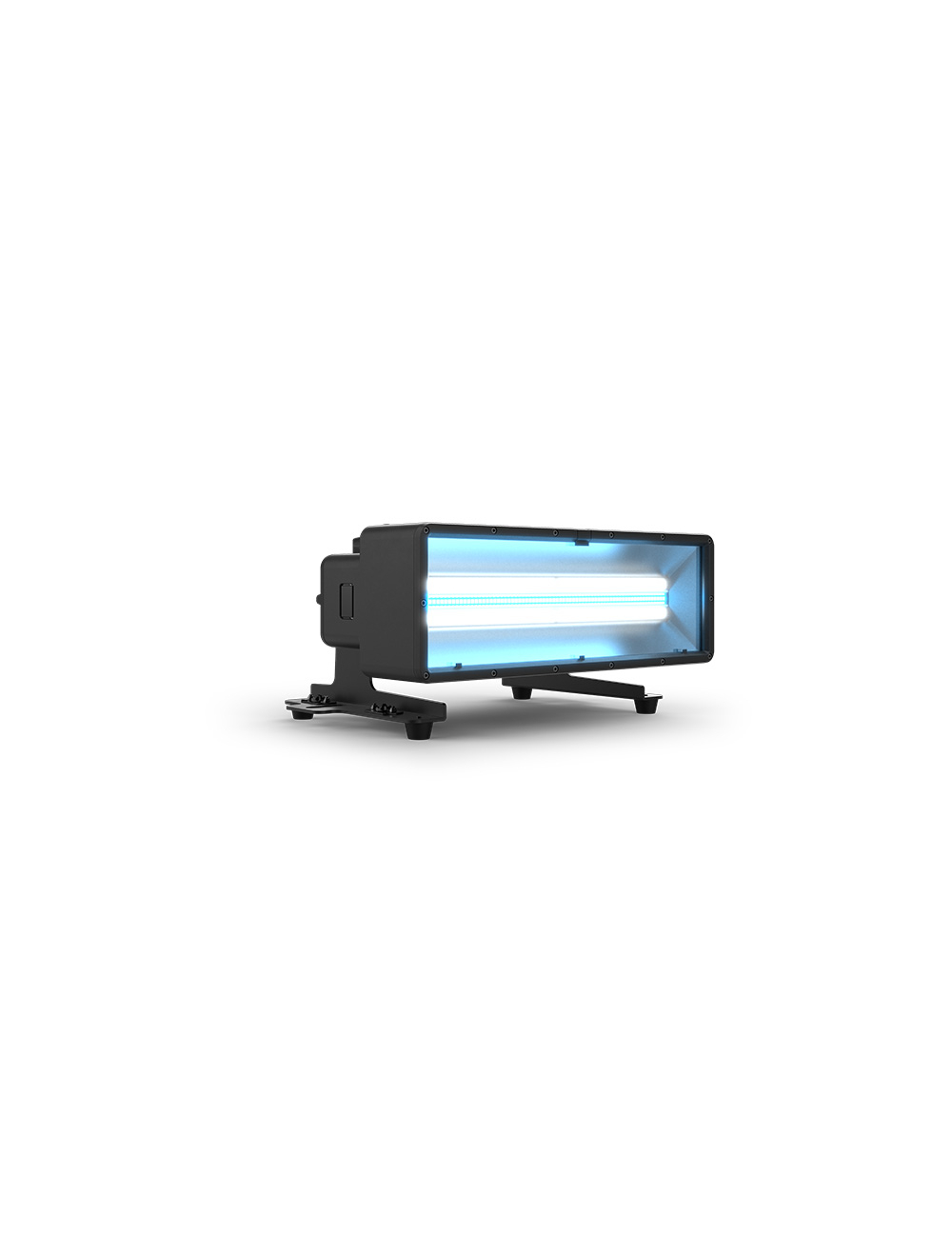

Chauvet Pro STRIKEBOLT1C Strike Bolt 1C

AT A GLANCE
• Intense, stackable strobe with added color effects rated IP65 for all-weather use
• Twin strobe tubes for intense strobe effects
• Single row of RGBA LEDs for color block effects behind an integrated smart glass (electronic frost) filter
• Designed for rigging versatility with multiple hanging points, end-to-end connections, floor feet, and the ability to be rigged inline with STRIKE Array fixtures to create unique blinder/strobe arrays.

SPECIFICATIONS
OPTICAL
• Light Source: 66 LEDs (quad-color) SMD 5050, 0.9 – 1.5 W, (470 mA), 50,000 hours life expectancy
• Light Source: 392 LEDs, (CW) 1.5 W, 5660 K, 50,000 hours life expectancy
• Color Temperature (at full): 5692K
• CRI: 89.2
• Beam Angle (Combine): 77.5° x 55.8°
• Beam Angle (Plate): 84.6° x 73.6°
• Beam Angle (Beam): 77.7° x 54.7°
• Field Angle (Combine): 130.6° x 104.4°
• Field Angle (Plate): 139.7° x 114.5°
• Field Angle (Beam): 129.1° x 102.3°
• Lumens (Combined): 20,251
• Lumens (Plate): 2735
• Lumens (Beam): 23,736
• Illuminance (Combined): 605 lux @ 5 m
• Illuminance (Plate): 66 lux @ 5 m
• Illuminance (Beam): 729 lux @ 5 m
• Selectable PWM: 1000 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz, 64,000 Hz
• Ultra-smooth 18-bit dimming curves and speeds to complement any lighting scheme.

DYNAMIC EFFECTS
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL
• Dimensions: 14.96 x 8.39 x 11.81 in (380 x 213 x 300 mm)
• Weight: 19 lbs. (8.7 kg)
• Exterior Color: Black
• Housing Material: Magnesium alloy

CONNECTIONS
• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
• Cable Length (power): 5 ft (1.5 m)

CONTROL
• Control Protocol: DMX, RDM
• DMX Channels: 10, 11, 13, 17, 20, 25, 27, 40
• Modes/Personalities: 8 personalities (7, 10, 12, 16, 19, 32, 40, 53)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 4 units @ 120 V; 6 units @ 208 V; 8 units @ 230 V
• Power and Current: 329 W, 2.82 A @ 120 V, 60 Hz
• Power and Current: 326 W, 1.82 A @ 208 V, 60 Hz
• Power and Current: 323 W, 1.48 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
• IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
• STRIKE Bolt 1C
• Stealth Filter
• Seetronic Powerkon IP65
• Omega bracket with mounting hardware

OPTIONAL ACCESSORIES
• STRIKE Array Flush Bracket
• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-08
• IP Rated Seetronic® Powerkon Extensions
• IP Rated DMX cables
• UPLOAD 03 software uploader

ORDERING INFO
• Item Code: 03052014
