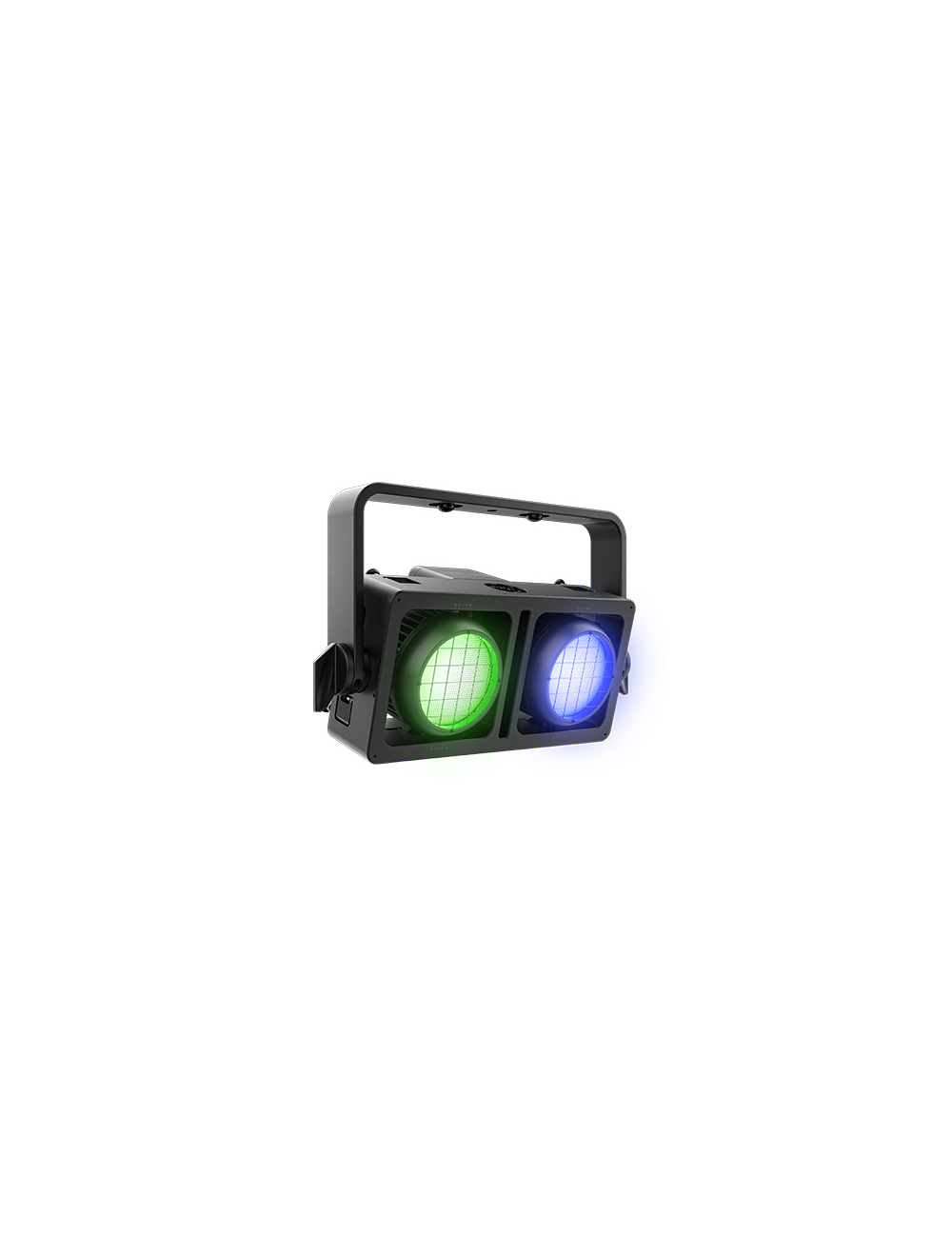

Chauvet Pro STRIKEARRAY2C Strike Array 2C

AT A GLANCE
• Intense 2 pod color blinder/strobe rated IP65 for all-weather use
• Full range of color and excellent rendition of any color temperature of white
• Emulated “red shift” to mimic incandescent fixtures perfectly.
• Individual pan (or tilt depending on mount orientation) of each head to allow for directional adjustment of light output.
• Innovative interlocking system to connect multiple STRIKE Array family fixtures together.
• Multiple mounting locations and repositionable yoke with ¼ turn adaptors for creative and convenient rigging options
• Independent pod control and strobe functionality for high-impact effects on the fly
• Ultra-smooth 18-bit dimming curves and speeds to complement any lighting scheme.

SPECIFICATIONS
OPTICAL
• Light Source: 134 LEDs (56 quad-color RGBA, 78 WW) 2.7 to 4.32 W, (871 mA), 50,000 hours life expectancy.
• Color Temperature (range): 2800 to 6500 K
• Color Temperature (at full): 6528 K
• CRI: 94.4
• CRI (@3200K): 94.4
• Beam Angle: 59.1°
• Field Angle: 102.1°
• Lumens: 25,917
• Illuminance (total): 979 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL
• Dimensions: 21.85" x 10.24" x 13.78"
• Weight: 21.38 lb
• Exterior Color: Black
• Housing Material: Aluminum alloy

CONNECTIONS
• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin Seetronic IP65 XLR or Seetronic IP65 etherCON
• Cable Length (power): 5 ft (1.5 m)
• Software Update: USB-C

CONTROL
• Control Protocol: Art-Net, sACN, DMX, RDM
• Modes/Personalities: 10 personalities (1ch, 3ch, 5ch, 7ch, 10ch, 12ch1, 12ch2 13ch, 16ch, HSV)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V
• Power and Current: 600 W, 5.000 A @ 120 V, 60 Hz
• Power and Current: 583 W, 2.780 A @ 208 V, 60 Hz
• Power and Current: 581 W, 2.491 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, FCC, ETL, cULus
• IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
• STRIKE Array 2C
• Seetronic Powerkon IP65
• Omega bracket with mounting hardware

OPTIONAL ACCESSORIES
• STRIKE Array Flush Bracket
• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-08
• IP Rated Seetronic® Powerkon Extensions
• IP Rated DMX cables
• IP Rated EtherCon Cables
• UPLOAD 03 software uploader

ORDERING INFO
• Item Code: 781462224141
