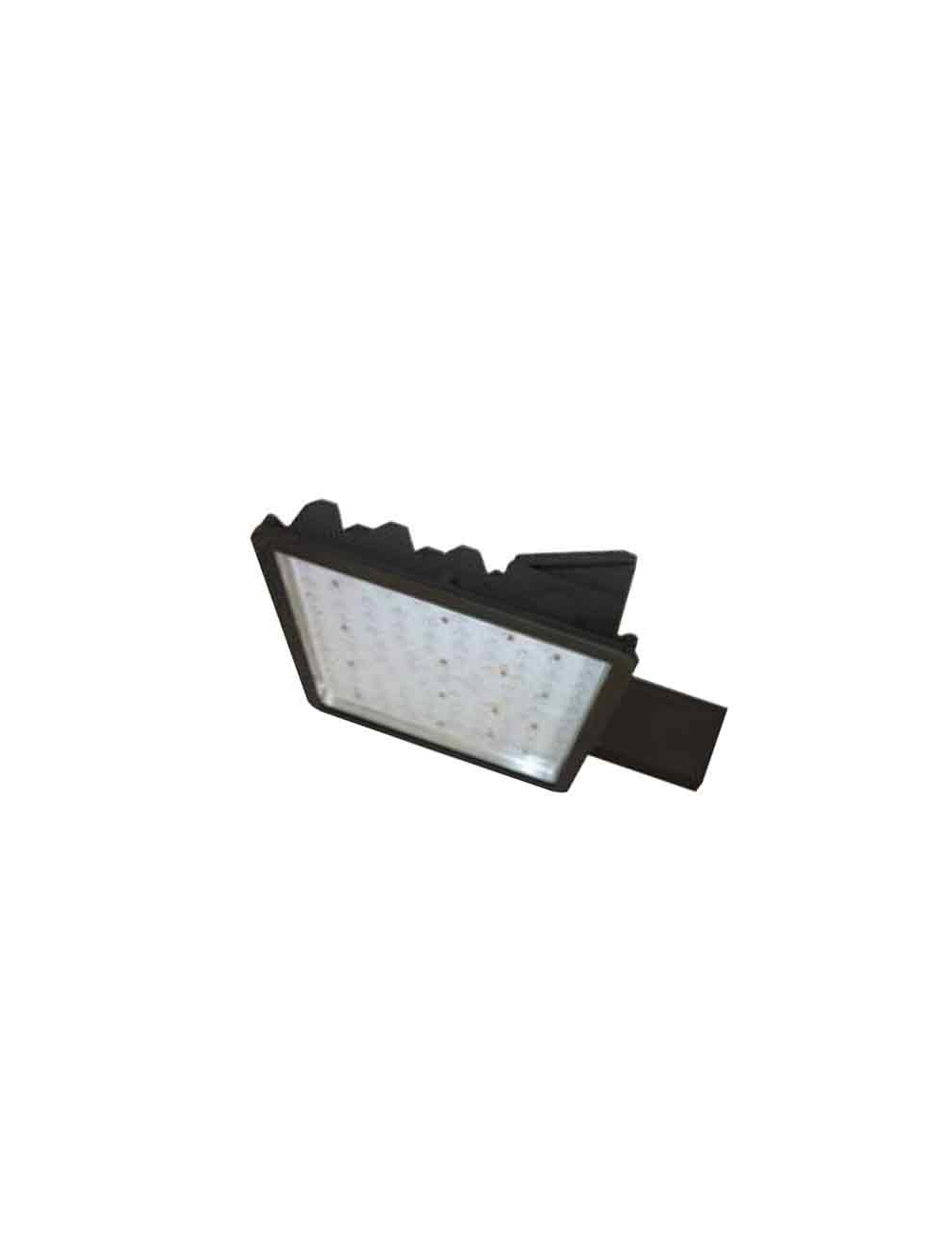

DuraGuard AL35Q Series DuraLED 16˝ Area/Wall/Flood Light Bronze Finish
The DuraGuard AL35Q luminaire is available in two wattages with a wide choice of mounting configurations and optical distributions.
* Accessories such as Custom Finishes, Photocells, Emergency Battery Backup and Surge Protection are available upon request. Please inquire for more information. Fees Apply. *
Housing: Heavy-Duty Die Cast Aluminum Housing & Front Frame, Integral Heat Sinking, Driver Compartment. Photocell Adaptable.
Listing & Ratings: ETL: Listed for Wet Locations, ANSI/UL 1598, 8750 IP66 Sealed LED Compartment.
Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens: Tempered Clear Flat Glass Lens.
Mounting Options: Mount with Two-Piece Swivel Bracket, Adjustable Slipfitter, Yoke or Wall Mount Bracket.
DuraLED LED: Aluminum Boards
Wattage: Multiple Wattages Available: 136w, 174w, 225w, 262w
Driver: Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
| Part Number | AL35Q |
|---|---|
| Manufacturer | DuraGuard |
| Watts | 180 Watts |
| Lumens | 17000 |
| Color Temperature | 4000 Kelvin, 5000 Kelvin |
| Beam Angle | Not Specified |
| Dimmable | No |
| Input Voltage | 120V-277V |
| Rated Life | 150,000 hours + |
| Minimum Operating Temperature | -4° |
| Maximum Operating Temperature | 104° |
| Dimensions | See Photos |
| Warranty | 5 Year |
| Certifications |     |
| Specification Sheet | |
| Lead Time | In Stock - Quick Ship, Build Item 7-10 Days |
