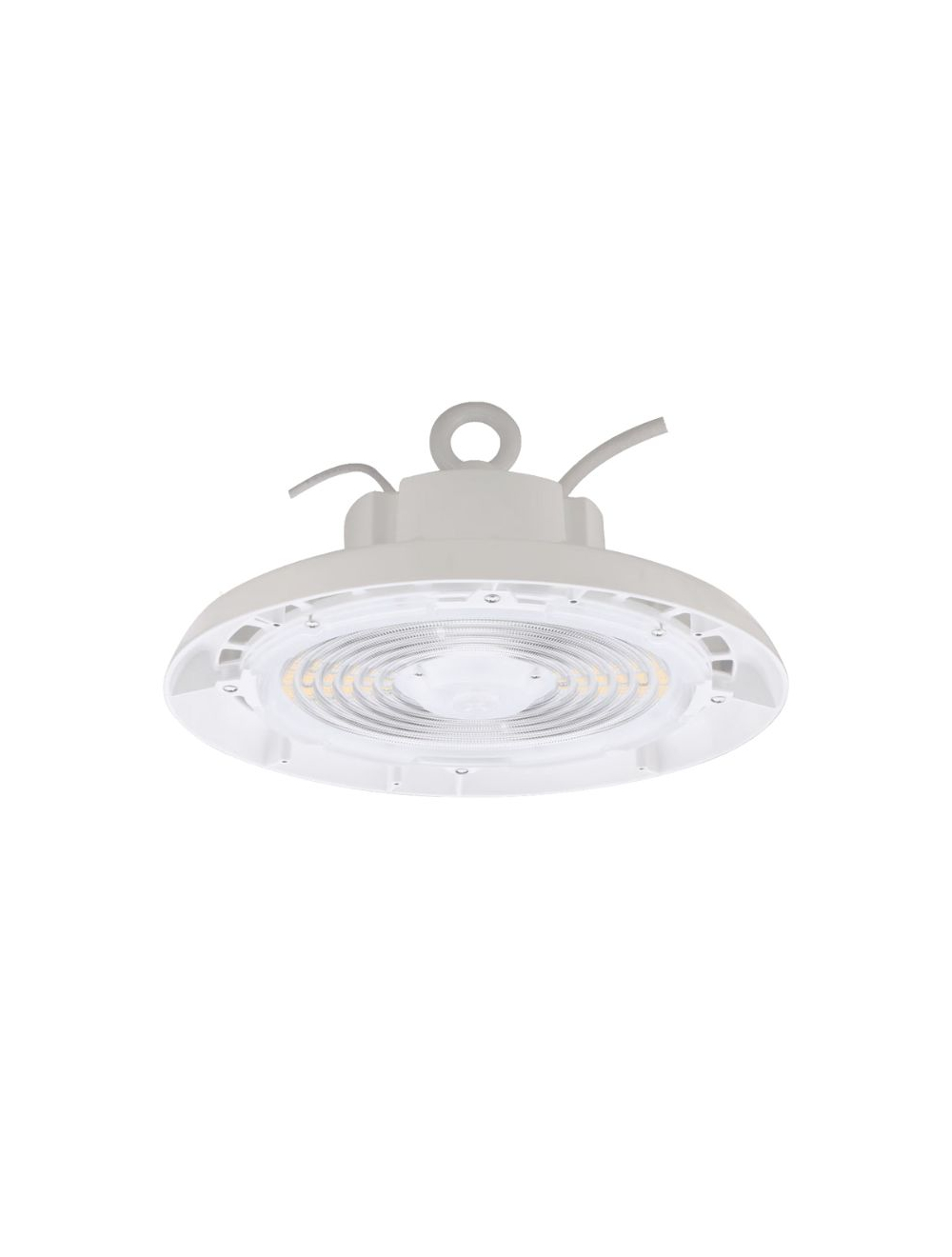

Eiko BAYE3-PS150-FCCT-H-WH Round High Bay Wattage and 3CCT Selectable 120-347 Volt Dimmable White Finish 15780

HIGHLIGHTS
• Round high bay designed with performance and value in mind
• Controls Ready makes adding controls quick and easy. Includes screw-in receptacle for Standalone sensors or Networked Lighting Controls
• Includes extended length 10ft power and dimming cord and hook for easy installation
• Reflectors and mounting accessories available
• PowerSet feature allows for multiple lumen stops out of the box
• FieldCCeT features provide multiple color temperature settings in one fixture

CERTIFICATIONS
• UL Certified for US & Canada
• RoHS Compliant
• FCC Compliant
• ICES-005 Compliant
• IP65 Rated
• DesignLights Consortium Premium Qualified - meets the requirements for the highest DLC qualification for efficacy and lumen maintenance
• NSF listed for Splash Zone and Non-Food Zone (modification by EiKO is necessary to meet NSF standards.)

PERFORMANCE
• High efficacy, up to 150 lm/W
• Available in fixed wattage models: 100W, 150W, 200W, 240W or 300W and PowerSet models: power-selectable 150/130/100W and 240/200/180W
• Available in single CCT models: 4000K or 5000K CCT or FieldCCeT models: field-selectable CCT 35/40/5000K
• CRI: >80
• Beam Angle: 90°
• Estimated L70: 100,000 Hours

ELECTRICAL
• Input voltage: 120-277V or 120-347V
• 0-10V dimming, dim-to-off
• 12VDC Aux, 200mA max
• Surge protection: 6kV
• Power factor: >0.9
• THD: <20%

THERMAL
• -40°F to 122°F (-40°C to 50°C) ambient operating temperature
• Ambient operating temperature with sensor (see selected sensor datasheet)

CONSTRUCTION
• Matte black or white powder-coated, die-cast Aluminum
• Impact-resistant polycarbonate lens
• 10ft power and dimming cord
• Hook included

WARRANTY
• 5 Year limited warranty available online. Contact your EiKO sales rep for additional details.

APPLICATIONS
• Warehouses
• Manufacturing Plants
• Distribution Centers
• Grocery Stores
• Gymnasiums
• Indoor Recreational Facilities
• Cold Storage
• Big Box Retail
• Service Repair Centers

KEY FEATURES

CONTROLS READY
Easily add controls anytime without the need for additional wiring.

PRE-INSTALLED 10FT CORD
10ft power and dimming cord out of the box makes installation and servicing easy.

MOUNTING OPTIONS
Multiple ways to mount: eyebolt (included), pipe adapter, hook, or yoke mount (optional). Pipe adapter for pendant mounting (easily connects directly to conduit via 3/4" threaded pipe), includes a hook mount which quickly accommodates chain length, while the adjustable yoke mount is ideal for surface mount applications.
