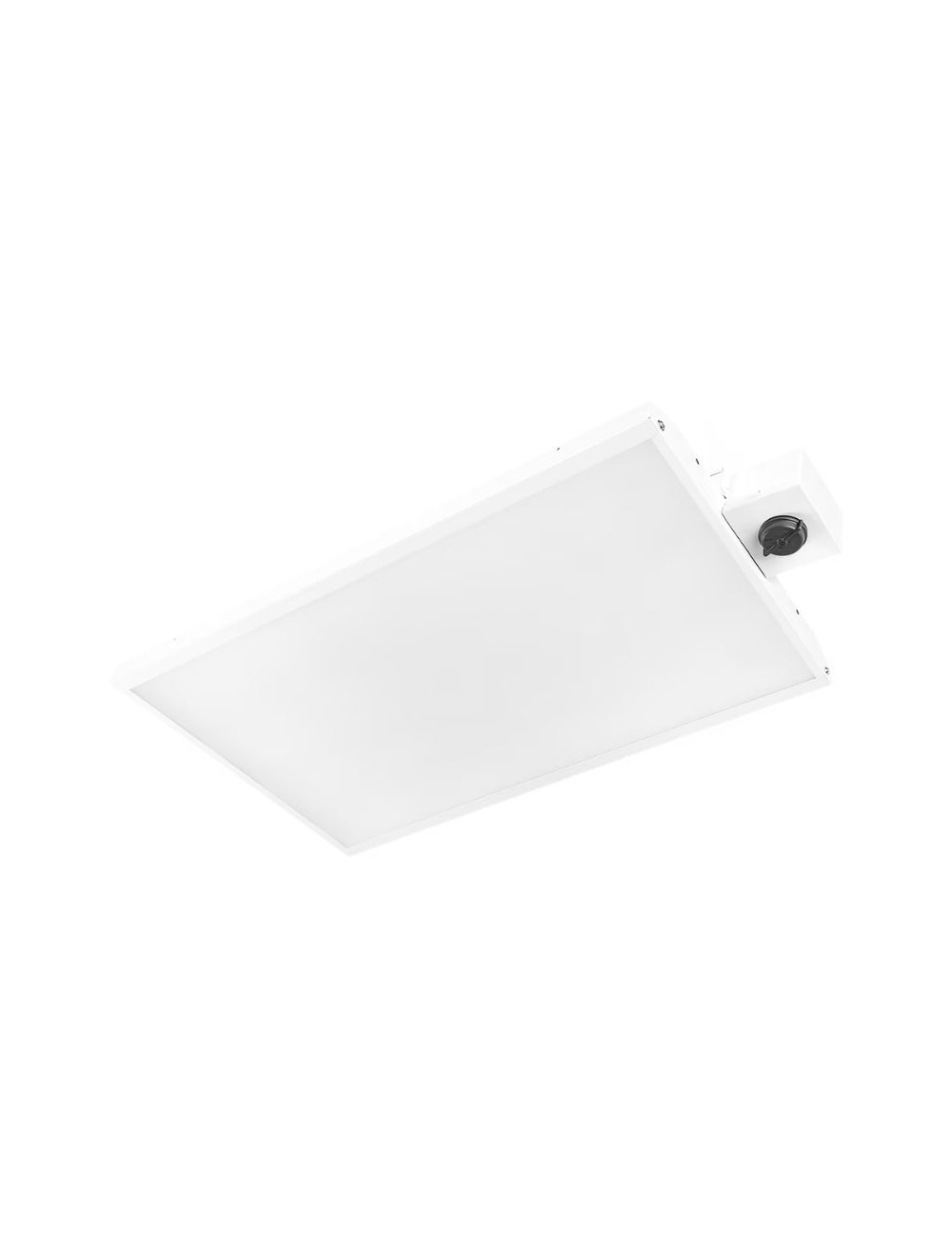

Eiko LLH3E/240W/840/UD 4' Linear High Bay 240 Watt 4000K 120-277 Volt 0-10V Dimming Z10 12383

FEATURES
• 150 lpw ultra-high efficiency delivers superior performance over fluorescent and HID, saving up to 60% of energy costs
• Lumens: 9,750 - 57,000; 150 lumens per watt
• Multiple control options, including 0-10V, occupancy sensors, and DLC Qualified Xi-Fi wireless mesh controls system.
• Standard Z10 receptacle simplifies adding controls

CERTIFICATIONS
• UL Listed for dry and damp locations
• DesignLights Consortium® Premium Qualified - meets the requirements for the highest DLC qualification for efficacy and lumen maintenance

PERFORMANCE
• Rated lifetime:
Reported L80 >54,000 hours @ 50°C
Reported L90 44,000 hours @ 50°C
Projected L70 150,000 hours @ 50°C
• 4000K, 5000K CCT
• CRI: >80
• UGR: <28

ELECTRICAL
• Input voltage: 120-277V; 277-480V
• 0-10V dimming to <10% with dim-to-off capability
• Power Factor: >.9
• THD: <20%
• Dimming sink current: 2mA
• Auxiliary Power: 12VDC, 200mA

THERMAL
• -22°F to 122°F (-30°C to 50°C) operating temperature

CONSTRUCTION
• Heavy-gauge steel body with welded frame construction resists twisting and bowing
• Diffuse frosted acrylic lens to control glare (standard) or optional clear lens for higher light output (sold separately)
• 10 ft. Y-toggle aircraft cable mounting hardware included
• Built-in surge protection: 4kV (120-277V); 10kV (277-480V)

WARRANTY
• 5-year limited warranty. Additional warranty options are available. Contact EiKO for details

APPLICATIONS
• Warehouses
• Manufacturing Plants
• Distribution Centers
• Grocery Stores
• Gymnasiums
• Indoor Recreational Facilities
• Cold Storage
• Big Box Retail
• Service Repair Centers
