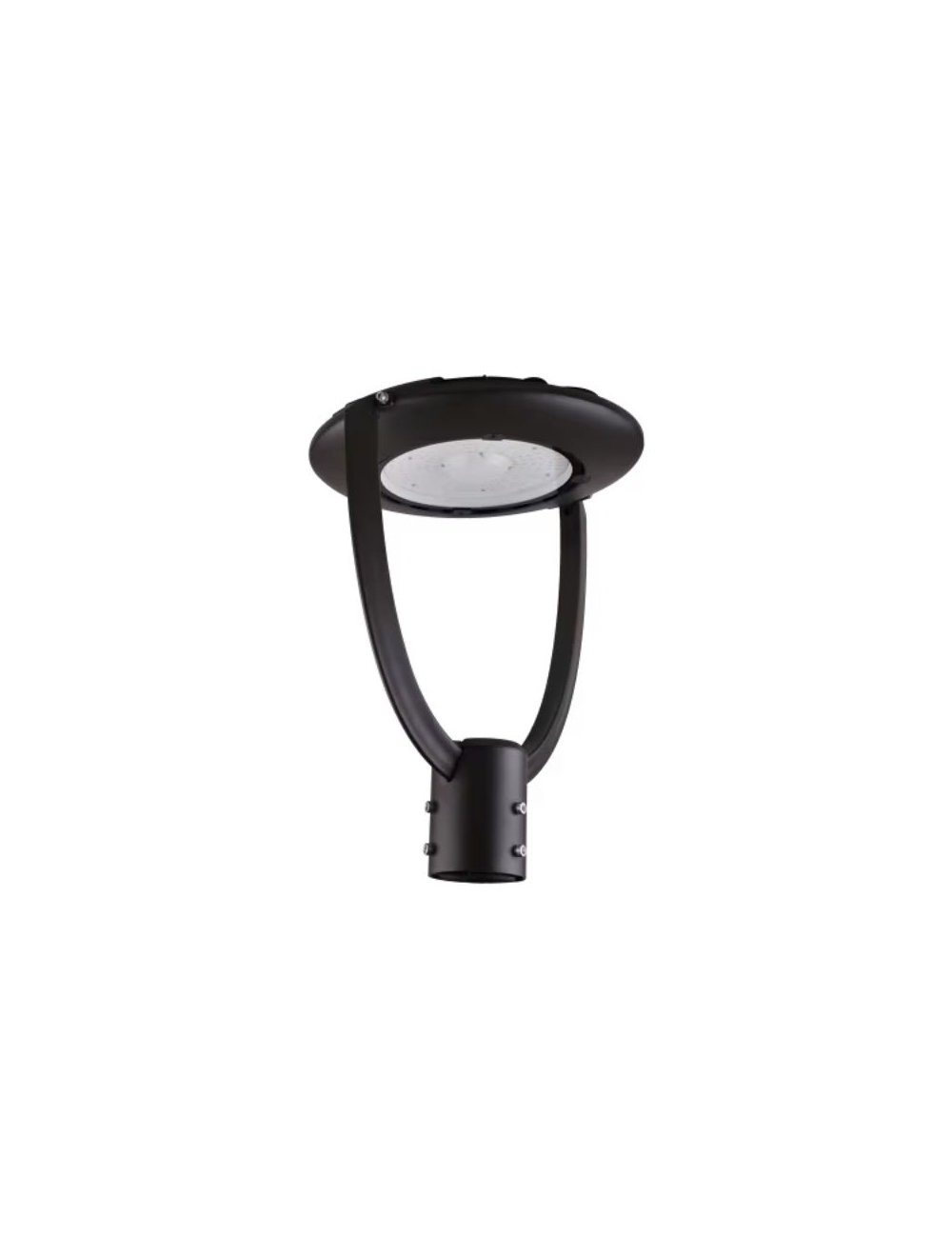

Eiko PT3-55GS-3 Pole Top Wattage and 3CCT Selectable 100-347 Volt Dimmable 14762
These PT3-Series LED Pole Top luminaires are a modern twist on the everyday pathway fixture. With a wide beam angle that provides uniform light, these fixtures are the perfect lighting solution for parking lots, parks, and retail settings.
HIGHLIGHTS
• Pole top luminaires with a modern twist from everyday pathway fixtures
• Controls Ready makes adding controls quick and easy. Includes screw-in receptacle for 3-pin twist-lock NEMA photocell receptacle with shorting cap included
• PowerSet feature allows for multiple lumen stops out of the box
• FieldCCeT features provide multiple color temperature settings in one fixture
CERTIFICATIONS
• UL listed for US & Canada
• RoHS Compliant
• FCC Compliant
• ICES-005 Compliant
• IP65 Rated
• DesignLights Consortium Premium Qualified - meets the requirements for the highest DLC qualification for efficacy and lumen maintenance
PERFORMANCE
• High Efficacy, up to 147 lm/W
• Available in PowerSet models: power-selectable 55/40/25W, 100/80/60W, 150/125/100W
• Available in FieldCCeT models: field-selectable 30/40/5000K
• CRI: >80
• Estimated L70: 100,000 Hours
ELECTRICAL
• Input voltage: 120-347V
• 0-10V dimming, dim-to-off
• Surge Protection: 6kV included
• Power factor: >0.9
• THD: <20%
THERMAL
• -40°F to 122°F (-40°C to 50°C) ambient operating temperature (55 & 100W)
• -40°F to 113°F (-40°C to 45°C) ambient operating temperature (150W)
CONSTRUCTION
• Matte black die-cast aluminum housing
• Glass protective lens (55 & 100W); Polycarbonate lens (150W)
WARRANTY
• 5-Year limited warranty available online. Contact your EiKO sales rep for additional details.
APPLICATIONS
• Parking Areas
• Roadways
• Campuses
• Streetscapes
• Parks
• Area security lighting
KEY FEATURES
INSTALLATION
Pole top arms come pre-installed to the fixture head and fixture base. The max. pole/tenon diameter is 3"; the min. pole/tenon diameter is 1-3/4", and the max. Depth of adapter is 3-3/8". Install screws are provided.
PHOTOCELL

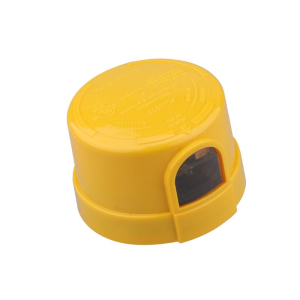

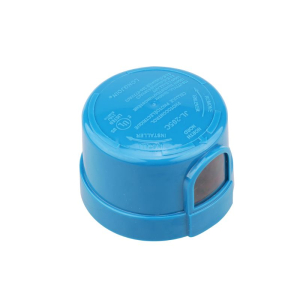

Integrated NEMA 3-pin receptacle and shorting cap included. NEMA 3-pin photocell accessories are available for enhanced security and additional energy savings.
MODERN APPEARANCE WITH PERFORMANCE
Matte black finish; glass protective lens (55 & 100W); polycarbonate lens (150W). FieldCCet and PowerSet allow for wattage and CCT selectability.
| Part Number | PT3-55GS-3 |
|---|---|
| Manufacturer | Eiko |
| Watts | 25 Watts, 40 Watts, 50 Watts |
| Lumens | Variable, See Spec Sheet |
| CRI | 80 |
| Color Temperature | 3000 Kelvin, 4000 Kelvin, 5000 Kelvin |
| Dimmable | Yes |
| Input Voltage | 100V-347V |
| Rated Life | 100,000 hours + |
| IP_Rating | IP65 |
| Minimum Operating Temperature | -40℉ |
| Maximum Operating Temperature | 122℉ |
| Dimensions | 23.38" x 15" x 3" |
| Warranty | 5 Year |
| Certifications |     |
| Lead Time | In Stock - Quick Ship |
| UPC Code | 031293147622 |
