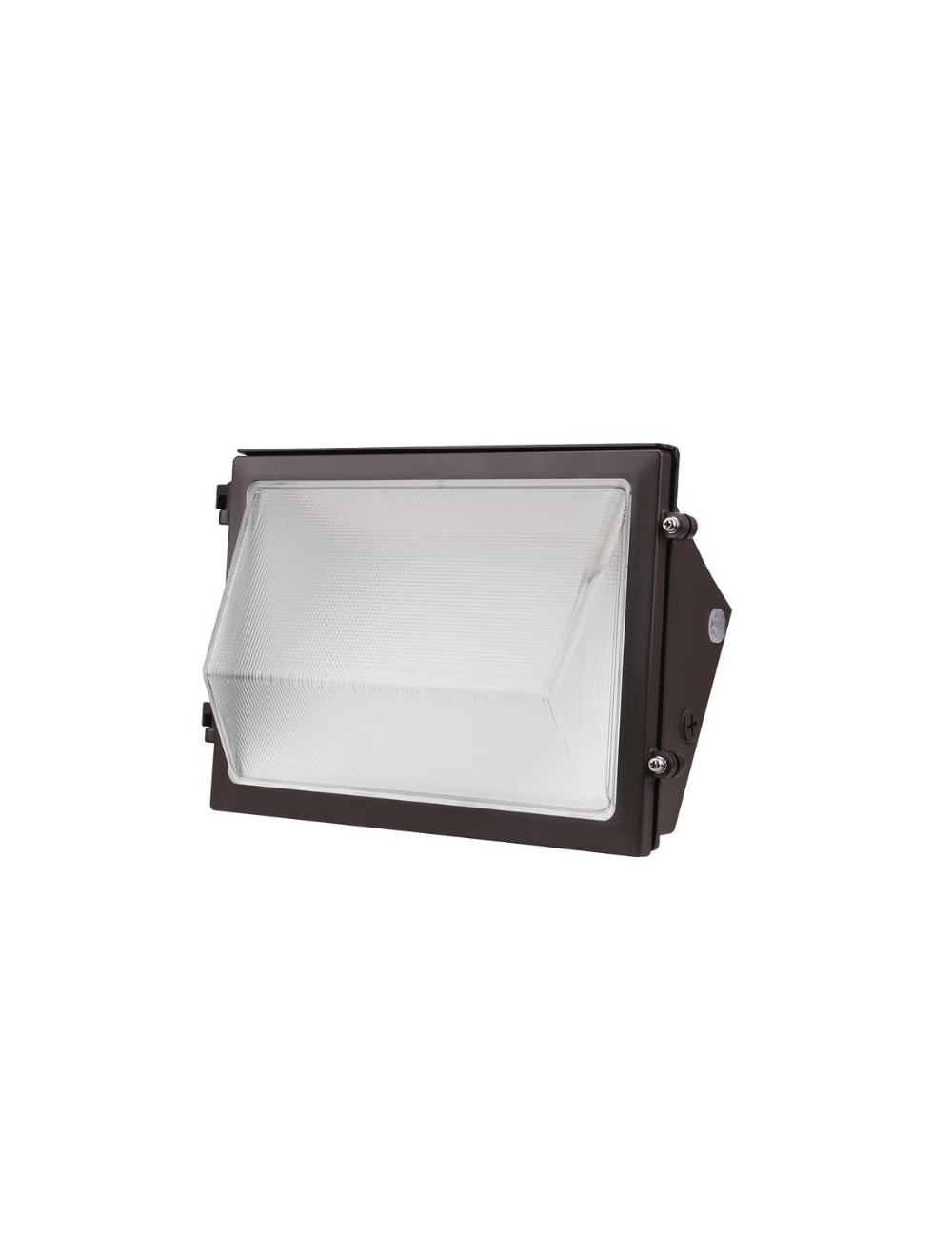

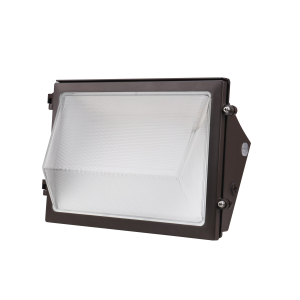

Eiko TWP1-PS45-FCCT-H Traditional Wall Pack Wattage and 3CCT Selectable 120-347 Volt Dimmable Bronze Finish with Photocell 13656
The EIKO Traditional Wall Pack (TWP1) combines a classic, legacy-inspired design with modern lighting efficiency. It features a hinged door housing, a glass lens, and a variety of mounting options, including the ability to use a junction box or mount directly to the wall.
HIGHLIGHTS
• Traditional style matches the appearance of legacy products while also covering the same footprint
• 4 - 1/2" knockouts make for versatile mounting
• Wall mount with or without junction box
• Integrated photocell for dusk to dawn operation (only on -U and -H models)
• Hinged, removable door housing makes installation easier
• Glass lens
• PowerSet feature allows for multiple lumen stops out of the box
• FieldCCeT features provide multiple color temperature settings in one fixture
CERTIFICATIONS
• UL Listed for US & Canada
• RoHS compliant
• FCC compliant
• ICES-005 compliant
• IP65 Rated
• IK Pending
• DesignLights Consortium Premium Qualified - meets the requirements for the highest DLC qualification for efficacy and lumen maintenance
PERFORMANCE
• High efficacy, up to 135 lm/W
• Available in PowerSet model: power-selectable 45/35/25W; 80/70/60W; 120/105/90W
• Available in single CCT models: 4000 or 5000K or FieldCCeT models: field-selectable CCT 30/40/5000K
• CRI: >80
• Rated Life: >54,000 hours
ELECTRICAL
• Input voltage: 120-277V, 120-347V, 277-480V
• 0-10V dimming, dim-to-off
• Surge protection: 4kV
• Power factor: >0.9
• THD: <20%.
THERMAL
• -40°F to 122°F (-40°C to 50°C) ambient operating temperature
• -13°F to 122°F (-25°C to 50°C) ambient operating temperature with photocell
CONSTRUCTION
• Bronze powder-coated, die-cast aluminum housing
• Glass lens
DIMMING
• For dimming compatibility, visit eiko.com
WARRANTY
• 5-Year limited warranty available online. Please contact your EiKO sales representative for additional details.
APPLICATIONS
• Industrial Parks
• Loading Docks
• Utility Sheds
• Entryways
• Walkways
• Storage Areas
• Security
• Perimeter Lighting
KEY FEATURES
TRADITIONAL STYLE
Matches the appearance of legacy products
INTEGRATED PHOTOCELL
Manage security and safety with the integrated photocell (only on -U and -H models); it can easily be disabled in the field
INSTALLATION MADE EASY
4 - 1/2" knockouts, hinged door housing, can be mounted with or without a junction box
| Part Number | TWP1-PS45-FCCT-H |
|---|---|
| Manufacturer | Eiko |
| Watts | 25 Watts, 35 Watts, 45 Watts |
| Lumens | Variable, See Spec Sheet |
| CRI | 80 |
| Color Temperature | 3000 Kelvin, 4000 Kelvin, 5000 Kelvin |
| Input Voltage | 120-347V |
| Rated Life | 54,000 hours+ |
| Minimum Operating Temperature | -40℉ |
| Maximum Operating Temperature | 122℉ |
| IP_Rating | IP65 |
| Dimensions | 14.5" x 6.5" x 9.5" |
| Length | 15 |
| Width | 7 |
| Height | 10 |
| Certifications |      |
| Warranty | 5 Year |
| UPC Code | 031293136565 |
| Lead Time | In Stock - Quick Ship |
