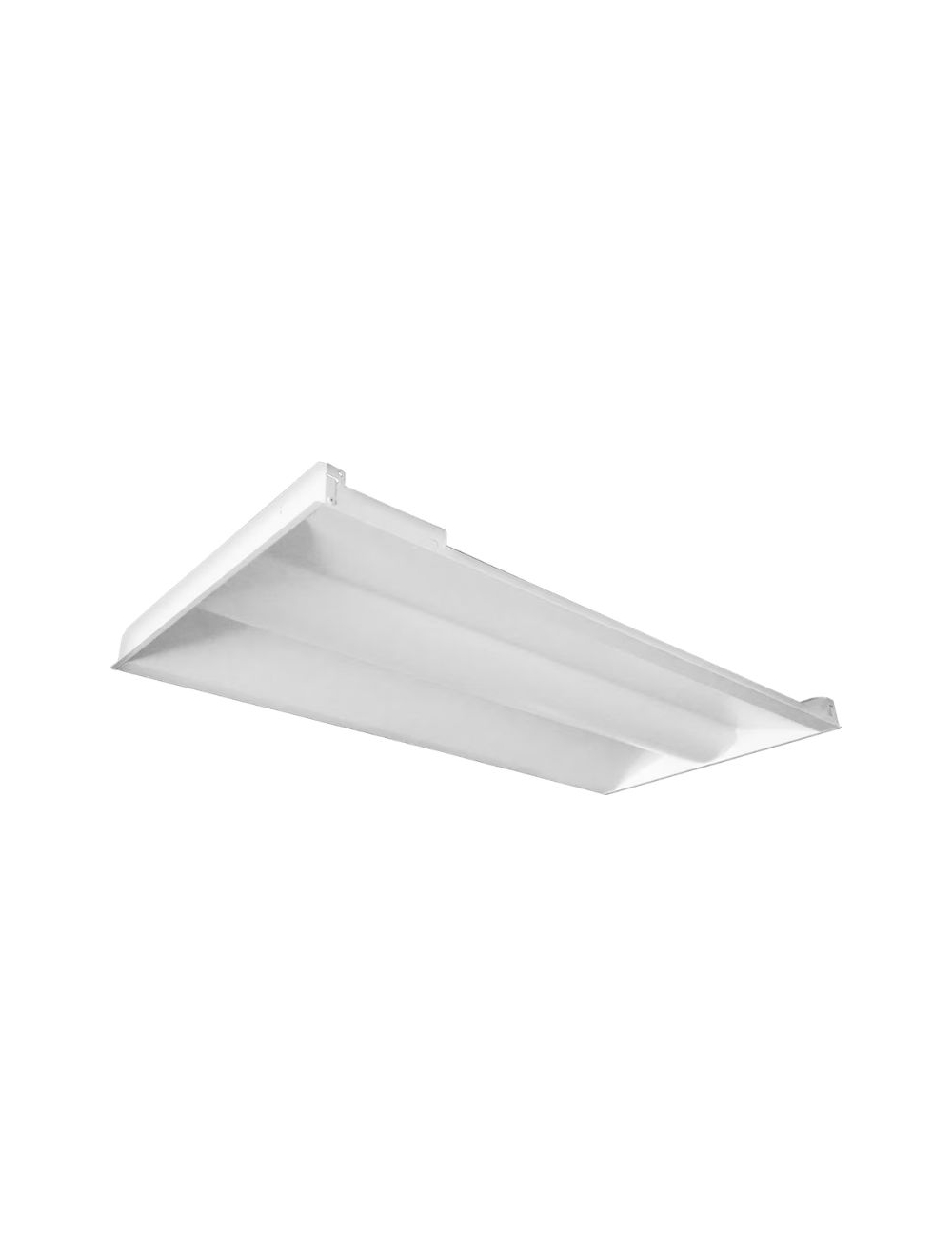

Eiko VOL24/PS50/850/HD 2x4 Volumetric Troffer 120-347 Volt Wattage Selectable 5000K 10998

HIGHLIGHTS
• Architectural recessed luminaire with lumens up to 12,750
• Direct/indirect illumination for visual comfort with minimal glare
• Clean line styling complements today's modern office decor
• One for one alternative LED solution to fluorescent luminaires/fixtures/troffers
• High Efficacy up to 150 lm/W
• Up to 50% energy savings over fluorescent troffers
• 0-10V dimmable standard
• PowerSet feature allows for multiple lumen stops out of the box
• FieldCCeT features provide multiple color temperature settings in one fixture

CERTIFICATION
• UL listed for US & Canada
• RoHS Compliant
• FCC Compliant
• IC Rated for insulation contact
• Damp Location rated
• DesignLights Consortium Qualified - meets DLC requirements for efficacy and lumen maintenance

PERFORMANCE
• High efficacy, up to 130 lm/W
• Available in PowerSet models: power-selectable 40/32/26W, 50/40/32W, 85/70/60W
• Available in single CCT models: 3500K, 4000K, or 5000K, or FieldCCeT models: field-selectable CCT 35/40/5000K
• CRI: >80
• Estimated Lifetime L90: >54,000 Hours

ELECTRICAL
• Input voltage: 120-277V or 120-347V
• 0-10V dimming, dim-to-off
• Power Factor: >0.9
• THD: <10%

THERMAL
• -4°F to 104°F (-20°C to 40°C) ambient operating temperature

CONSTRUCTION
• Reflector Precision die-formed, powder-coated, steel construction
• Custom extruded acrylic lens provides even illumination and visual comfort
• Integral earthquake clips

WARRANTY
• 5-Year limited warranty available online. Contact your EiKO sales rep for additional details.

APPLICATIONS
• Conference Rooms
• Retail
• Offices
• Hospitality
• Healthcare
• Schools
• Reception Areas
• Corridors
• Foyer
