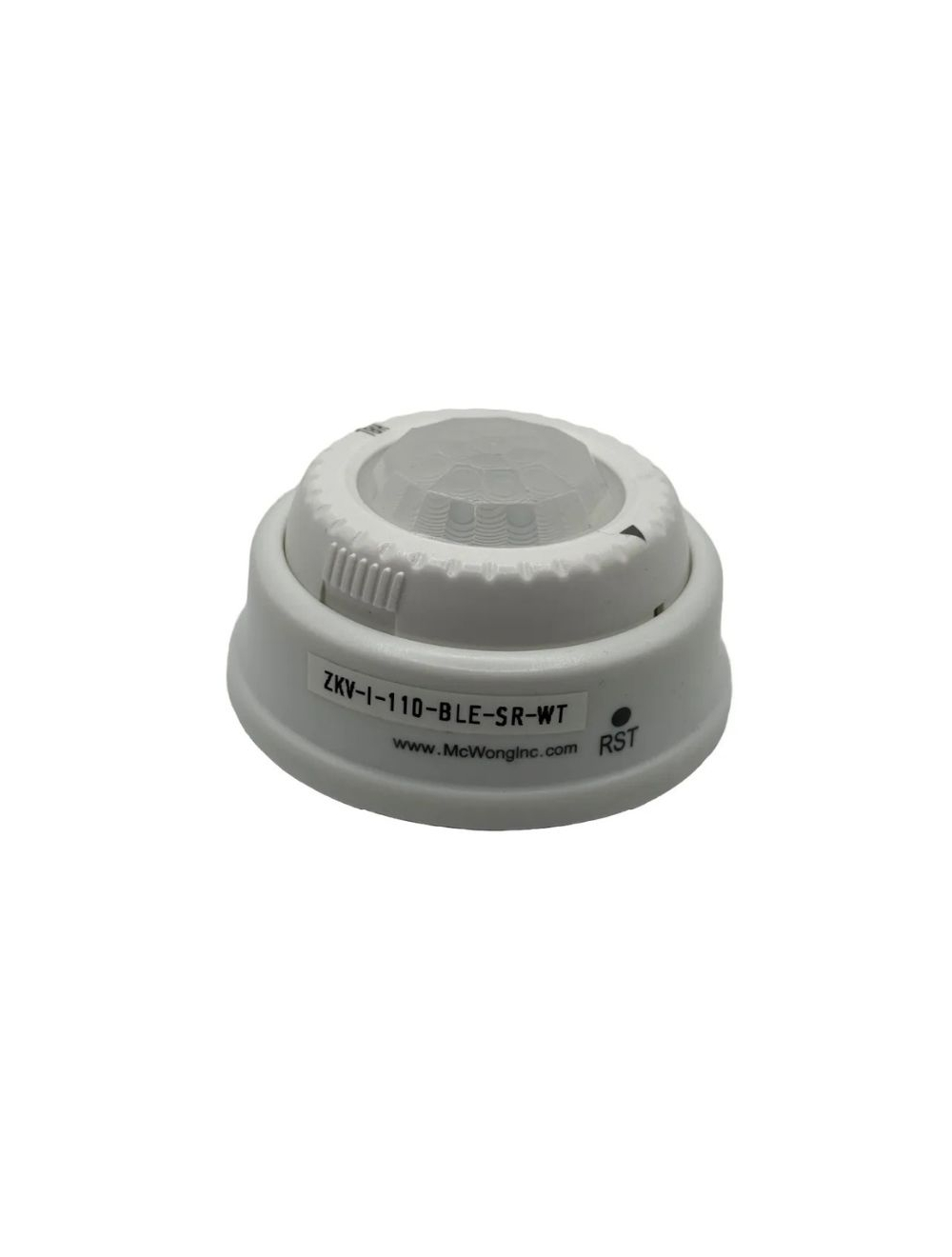

Halco PSC-ZKV-I-11H-BLE-SR-WT TruBlu Mesh Wireless PIR Fixture Sensor Controller 12-24 VDC 0-10V White Finish 25416

The PSC-ZKV-I products are a series of 1-Channel Wireless Fixture Controllers and use PIR motion detection architecture and passive infrared (PIR) technology for improved detection coverage.

$132.81

Lead Time

In Stock - Quick Ship

Return Policy

30 Days Terms

SKU

PSC-ZKV-I-11H-BLE-SR-WT

Details

Two different base versions are available for flexibility. The Z10 Base (-10 & -11) models have active high outputs for relay control. The controllers are IP65 rated for exterior use. They are suitable for a variety of indoor and outdoor applications in temperatures ranging from -40 °C to 70 °C. The –11 or –21 models also have an integral photo sensor. These devices are Bluetooth NLC certified and controlled wirelessly via Bluetooth Mesh technology, allowing for wireless dimming of luminaires. The compact size allows for seamless integration with the fixture.

• Bluetooth PIR Sensor/Controller for use in Area Light & Highbays 8-40FT with Z10 Base
• Use as a repeater for the sensor on other fixtures & save cost
• 0-10V Dimming, 1-Channel, Integrated Photosensor, Zoning
• Has Photocell functionality -can't use with a separate Photocell with Sensor
• Configurable using the mwConnect TruBlu web Portal or iOS Phone App

TruBlu™ Mesh Passive Infrared Outdoor Sensor-Controller
• Bluetooth® NLC Certified
• 1-Channel 0-10VDC Dimming
• Mounts On Fixture
• PIR Sensor Mounting Height Up To 40 ft (12.2 m)
• High-End Trim, Zoning, Continuous Dimming
• Z-10 0-10V Base
• Optional Sensor Output (active high)
• IP-65 Rated for Outdoor or Indoor Applications
• Quick Connector For Easy Installation
• Powered by 12-24VDC

Key Features
• 1-channel PIR sensor and controller
• 12–24 VDC input, 50 mA max current
• 0–10VDC dimming output, 30 mA
• Mounting height: 8–40 ft (low/high bay)
• Sensor range: up to 80 ft diameter (high bay)
• Active high load control output on select models
• Quick-connect fixture mount (receptacle sold separately)
• Bluetooth range 100 ft; operating temp -40°C to 70°C

Operation
• Bluetooth NLC certified sensor-controller with TruBlu™ Mesh
• Supports multi-vendor interoperability
• Configurable via TruBlu™ web portal or iOS mobile app
• Enables energy monitoring and demand response with an optional gateway
• 0–10V dimming output for driver control (1-channel)
• Active high relay output on select models
• Integrated photo sensor for ambient light sensing
• Mounts to Z-10 receptacles
