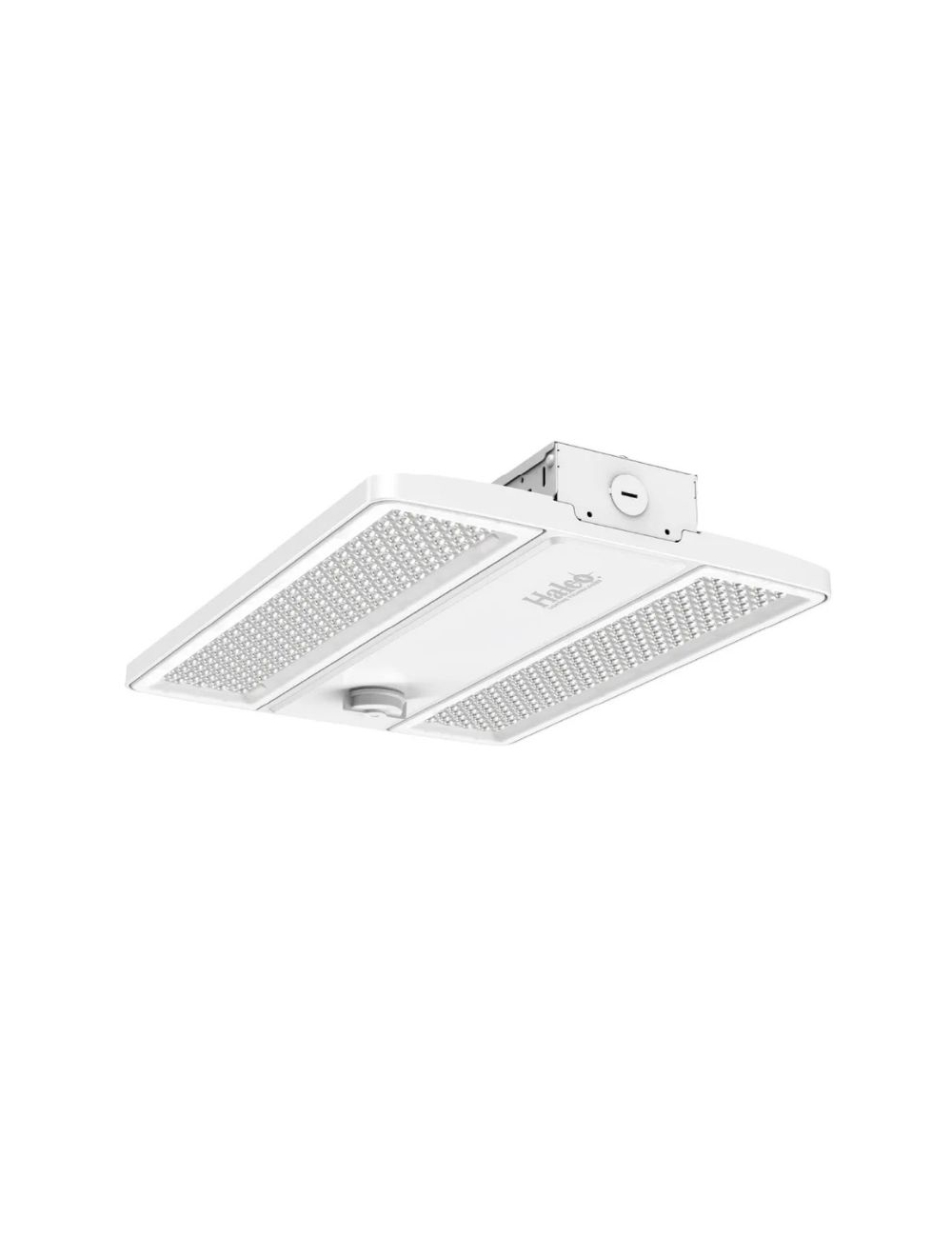

Halco CLHB-1-LS-CS-U Compact Linear High Bay 1 Gen-2 Wattage and 3CCT Selectable Adjustable Beam 120-277 Volt with Optional EM Battery Backup 36160

Its die-cast aluminum housing provides excellent heat dissipation and long-term durability, while field-selectable lumen output, CCT, and beam angle give users the flexibility to optimize light levels and distribution directly on site. The fixture also includes a Zhaga Z-10 receptacle for plug-and-play control integration, enabling Bluetooth and other advanced lighting control solutions to support greater energy savings and system efficiency. With its blend of performance, adaptability, and modern control readiness, the CLHB offers a reliable and versatile lighting solution for warehouses, gymnasiums, retail spaces, and other large indoor environments.

Features
• Compact Design to Reduce Shipping and Installation Time
• Lumen and Color Selectable
• Adjustable Beam Angle (Narrow, Standard, or Wide) with Simple Switch
• Zhaga Z10 Base for Plug & Play Sensor options (Bluetooth or Standalone)
• Operates in Temperatures up to 55 °C (131F)
• Comes with Chain and V-Hook, Pendant & Bracket Ceiling Mount Sold Separately
• Battery Backup Made-to-Order Option Available

ProLED Select Compact Linear High Bay Series
• Compact Design To Reduce Shipping Costs and Reduce Installation Time
• Lumen Packages Covering 14,600-47,700 Lumens
• Field Selectable Beam angle, Lumen, and CCT
• Integrated Z-10 Receptacle for Control Solution
• Operates in Ambient Temperatures up to 55° C

Performance
• Selectable Color Temperatures 3500K, 4000K, 5000K
• Selectable Lumens: 14,600/17,100/19,500, 19,700/22,500/24,200,
28,300/30,800/33,300, 38,600/43,300/47,700
• Field Beam Angle Selectable
(45°X100°/65°X90°/90°X90°)
• Up to 166 Lumens per watt
• 80+ CRI
• 0-10V Dimming
• 120-277VAC Standard, 277-480VAC Option
• L70 Lumen Maintenance > 100,000 Hours
• 5 Year limited warranty

Certifications
• DLC 6.0 Premium
• cULus, Damp location rating
• ROHS compliant
• FCC
• IP20

Construction
• Die-cast aluminum housing
• Polycarbonate lens
• 1/2" Knockouts on top, sides, and bottom
• Chain and v hook mount (standard)
• Wire guard, pendant mount, surface mount (accessories)

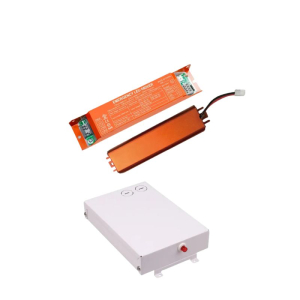

• Optional battery backup

Controls
• 0-10 VDC dimming
• Built in Zhaga Z-10 receptacle for stand-alone or Bluetooth control solutions

Product Options
• CLHB-1-LS-CS-U — 36160
• CLHB-1-LS-CS-U-EM — 36180
