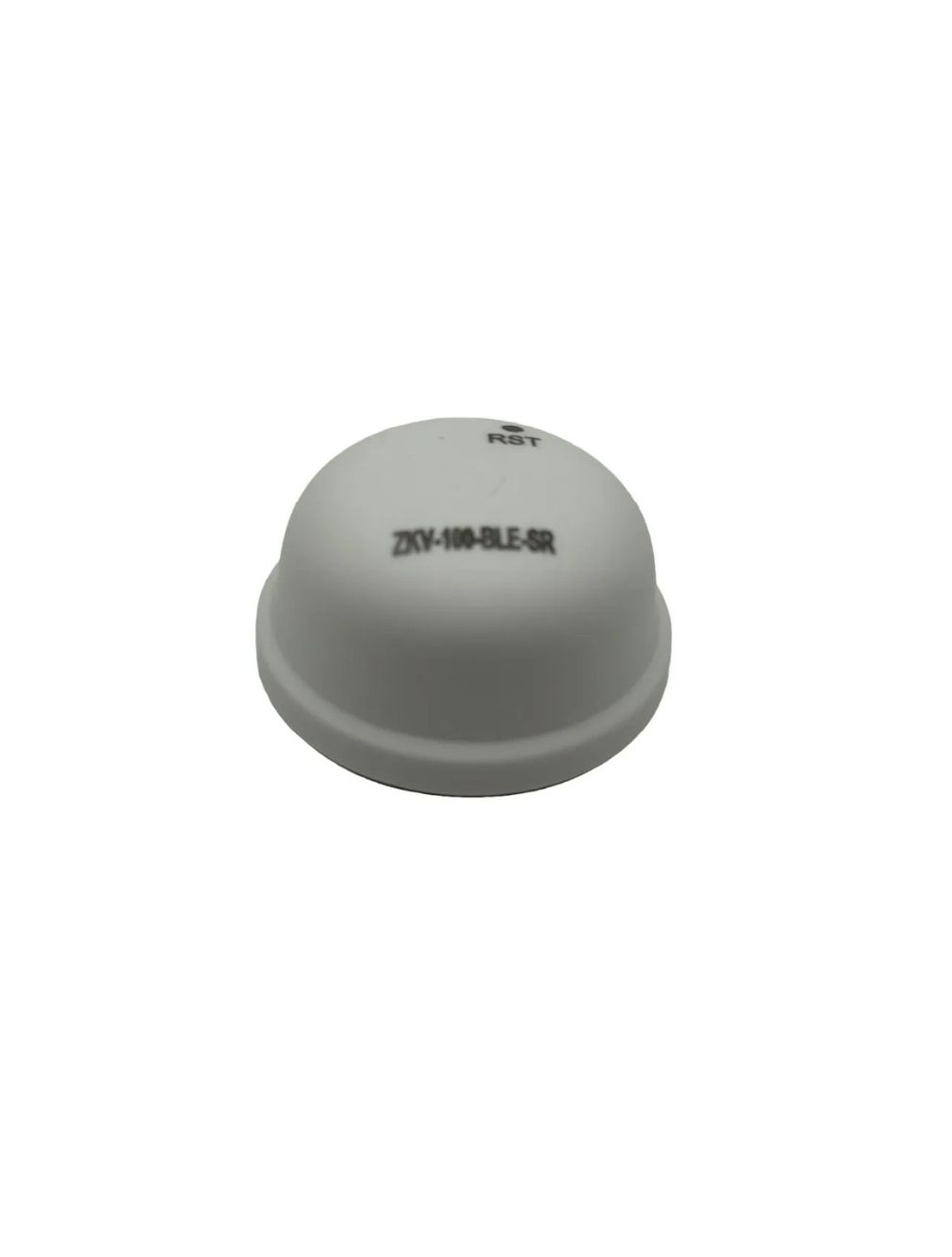

Halco PSC-ZKV-WCM-100-BLE-SR-WT TruBlu Mesh Wireless Fixture Controller/Node 12-24 VDC 0-10V White Finish 25417

Two different base versions are available for flexibility. The Z10 Base (-100 & -110) models have active high outputs for relay control. The controllers are IP65 rated for exterior use. They are suitable for a variety of indoor and outdoor applications in temperatures ranging from -40 °C to 70 °C. These devices are Bluetooth NLC certified and controlled wirelessly via Bluetooth Mesh technology, allowing for wireless dimming of luminaires. The compact size allows for seamless integration with the fixture.

• Bluetooth Controller/Node for use with Area Light & Highbays 8-40FT with Z10 Base
• Bluetooth range up to 100Ft
• 0-10V Dimming, 1-Channel Wireless Fixture Controllers, Zoning
• Has Photocell functionality -can't use with a separate Photocell with Sensor
• Configurable using the mwConnect TruBlu web Portal or iOS Phone App

Wireless Fixture Controller with Quick Connector
• Bluetooth® NLC Certified
• 1-Channel 0-10VDC Dimming
• Mounts On Fixture
• High-End Trim, Zoning, Continuous Dimming
• Z10 0-10V Base
• Optional Load Control Output (active high)
• IP65 Outdoor And Indoor Applications
• Quick Connector For Easy Installation
• Powered by 12-24VDC

Key Features
• 1-channel fixture controller
• 12–24 VDC input, 100 mA current consumption
• 0–10VDC dimming output, 30 mA
• Active high load control output
• Mounts via quick-connect receptacle (sold separately)
• Bluetooth range up to 100 ft (30.4 m)
• Operating temp: -30°C to 70°C

Operation
• Bluetooth NLC certified controller with TruBlu™ Mesh
• Supports multi-vendor interoperability
• Configurable via TruBlu™ web portal or iOS mobile app
• Enables energy monitoring and demand response (with optional gateway)
• 0–10V dimming output for driver control
• Mounts to Z10 0–10V receptacle
