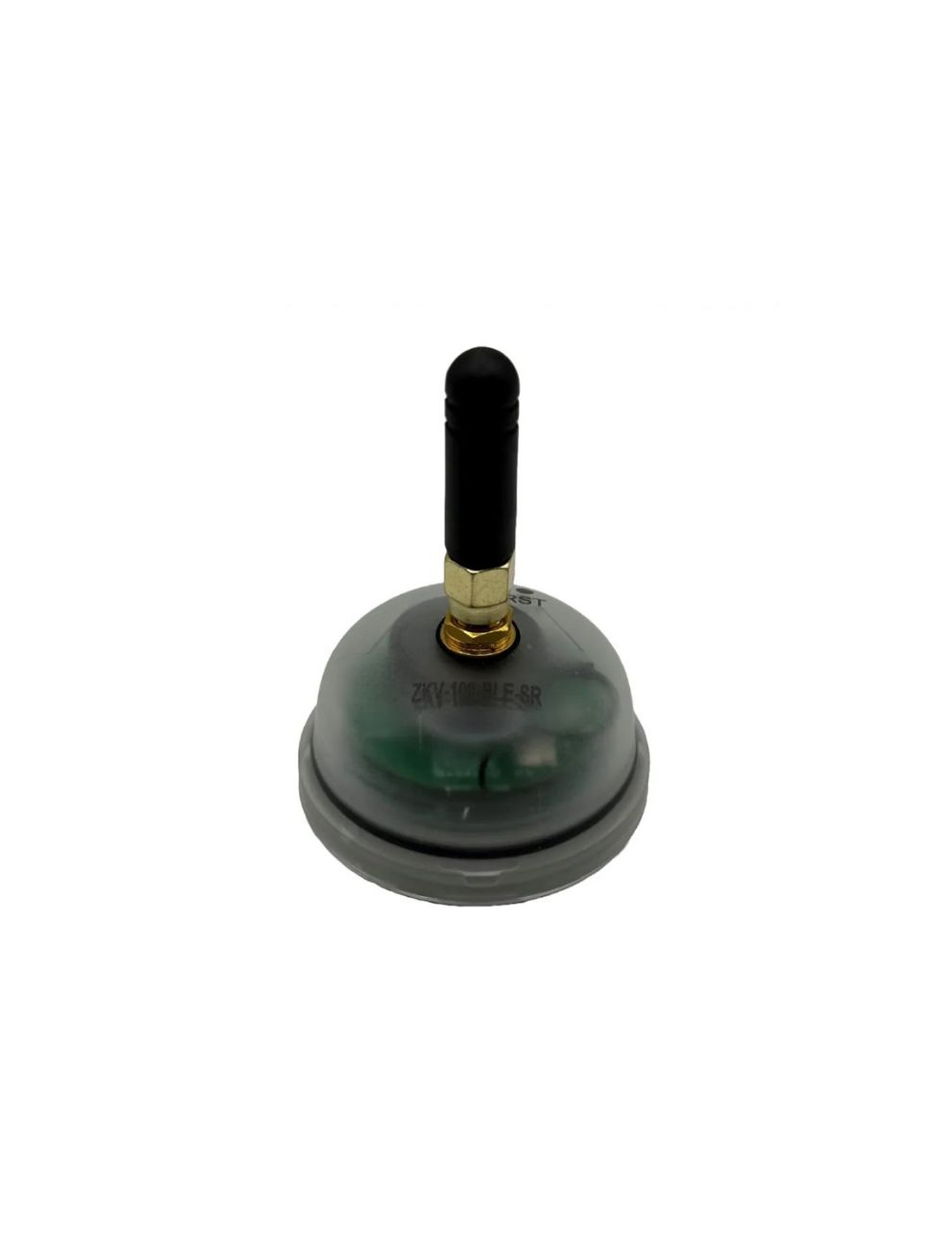

Halco PSC-ZKV-WCM-100-BLE-SR/EXA TruBlu Mesh Wireless Fixture Controller with Long Range Antenna 12-24 VDC 0-10V Clear 25414

Two different base versions are available for flexibility. The Z10 Base (-100) model has an active high output for relay control. The controller is IP65 rated for exterior use and suitable for a variety of indoor and outdoor applications in temperatures ranging from –22F to 158F (–30 to 70C). This device is Bluetooth NLC certified and controlled wirelessly via Bluetooth Mesh technology, allowing for wireless dimming of luminaires. The compact size allows for seamless integration with the fixture.

• Bluetooth Long Range Controller/Node for use in Area Light & Highbays 8-40FT with Z10 Base
• Get an extended range using a repeater with a longer range
• Bluetooth range up to 1200ft
• 0-10V Dimming, 1-Channel, Zoning
• For use with TruBlu Z10 Sensors
• Configurable using the mwConnect TruBlu web Portal or iOS Phone App

TruBlu™ Mesh 0-10V Outdoor Controller with Long Range Antenna
• Bluetooth® NLC Certified
• Single Channel Controller with 0-10VDC Dimming Output
• Integral Long Range Antenna
• Z10 0-10V Base
• Features High End Trim Adjustment, Zoning & Continuous Dimming
• Optional Load Control Output (active high)
• Powered by 12 to 24 VDC
• IP65 Rated for Outdoor or Indoor Applications
• Mounts to Light Fixture/Luminaire via Quick Connect Receptacle
• Conforms with DLC NLC5 Cybersecurity

Key Features
• Single-channel wireless fixture controller with long-range antenna
• 12–24 VDC input, 100 mA current consumption
• 0–10V dimming output, 30 mA
• Active high load control output (-100 model only)
• Mounts via quick-connect receptacle (sold separately)
• Bluetooth range up to 1200 ft (366 m)
• Operating temp: -22°F to 158°F (-30°C to 70°C)
• Clear/transparent housing; 90–95% non-condensing humidity at 30°C

Operation
• Bluetooth NLC certified controller with TruBlu™ Mesh
• Supports true multi-vendor interoperability
• Configurable via TruBlu™ web portal or iOS mobile app
• Enables energy monitoring and demand response with optional TruBlu™ Gateway
• Outputs a single 0–10V dimming channel for driver control
• 10–22VDC active high relay output
• Mounts to Z10 0–10V receptacle
• App supports initial setup and ongoing parameter adjustments
