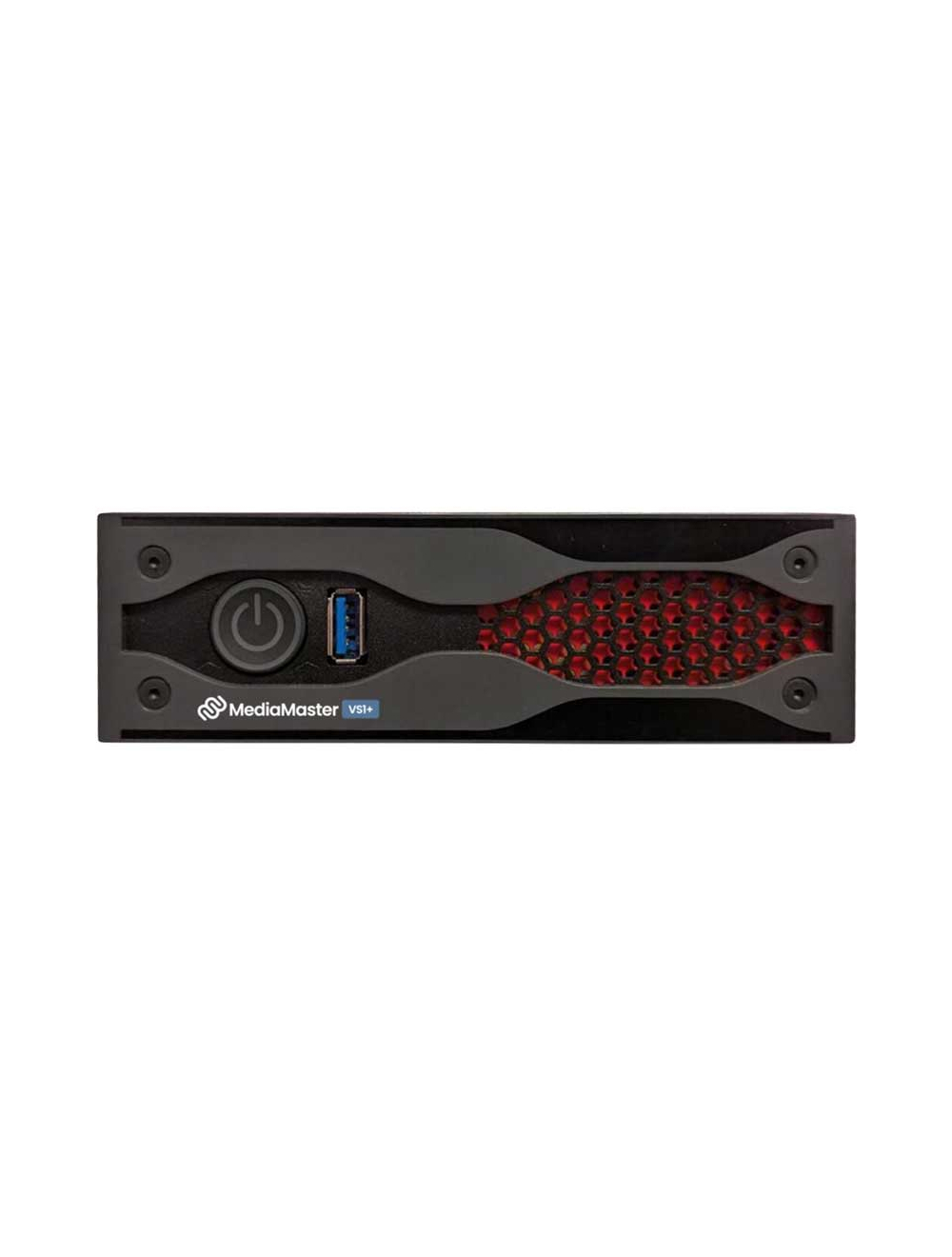

Chauvet Pro CHAMMMVS1PLUS MediaMaster VS1+ Media Server

VS1+ delivers stunning 4K playback in a compact, lightweight, and robust package—perfect for touring professionals who need power, flexibility, and reliability on the road.

$6,500.00

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

CHAMMMVS1PLUS

Details

Features:
• 4K Video Output
• Mount 3 Units in a 1U Rack Footprint
• MediaMaster Pro Software
• Includes LED Mapper & Video Mapper
• NDI Support

Hardware Specifications:
• Processor: Intel i7, 2.8 GHz
• Threads (Cores): 8 (4)
• RAM: 16GB (2x 8GB Crucial)
• RAM Type: DDR4 3200 MHz SODIMM
• Graphics Card: Intel Integrated Graphics
• Power Input: powerCON TRUE1 110 to 240 VAC
• Max Power Consumption (mains): TBC
• System Drive: 500GB SSD
• Storage Drive: Uses System Drive
• System Restore Drive: No
• Interface Output: 1 x HDMI 2K
• Media Output: 1 x HDMI 4K
• Ethernet Output: 1 x 2,5 GB/s
• Front USBs: 1 – USB 3.0 A Type
• Rear USBs: 2 x USB 3.0 A Type , 2 x USB-C

Software Specifications:
• Operating System: Windows 11 Pro
• MediaMaster Software: Pro
• Playback Layers: 48
• Surfaces: 250
• Outputs: 1
• Presets: 4096
• LED Mapper: Yes
• King Net Mapper: Yes
• Video Mapper: Yes
• Soft Edge / Geometric Correction: Yes
• NDI®5 : Yes
• CITP/MSEX: Yes
• GDTF Personality Export: Yes
• Factory System Restore: Yes

Control:
• Art-Net: Yes
• sACN: Yes
• Stand Alone Keyboard Control: Yes
• DMX Control: Optional MagicDMX
• Front Panel Control: Yes

Boxed Weights and Dimensions:
• Width: 515mm (20.28 inches)
• Depth: 235mm (9.25 inches)
• Height: 100mm (3.93 inches)
• Weight: 1.66 kg (3.66 lb)

Unit Weights and Dimensions:
• Width: 143mm (5.63 inches)
• Depth: 195mm (7.68 inches)
• Height: 43mm (1.69 inches) – 1U High
• Weight: 1.28 kg (2.82 lb)
