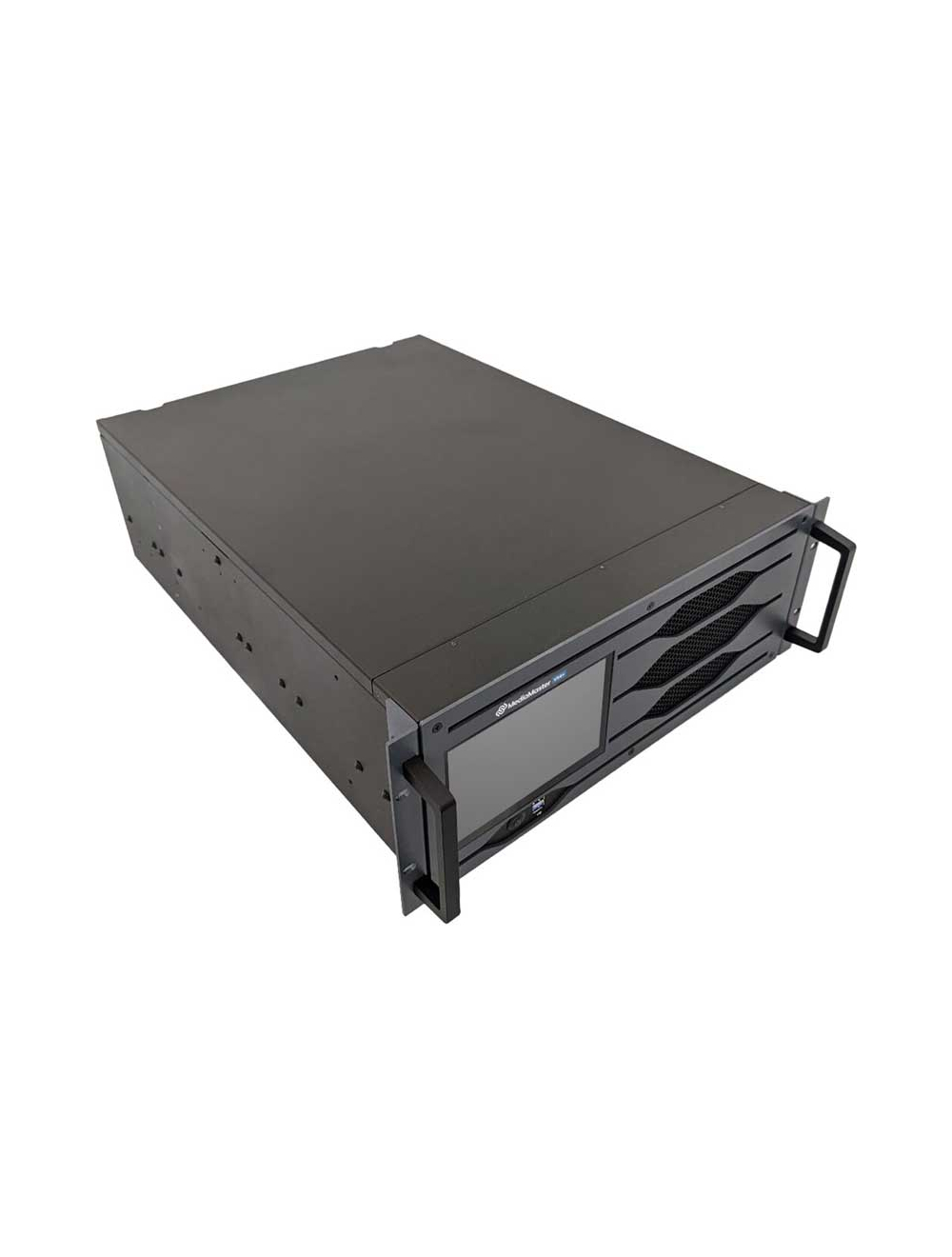

Chauvet Pro CHAMMMVS4PLUS MediaMaster VS4+ Media Server

The VS4+ is a rugged 19″ rackmount media server with seamless MediaMaster Pro integration, supporting up to 4×4K or 16×HD outputs. Compact, reliable, and versatile, it’s perfect for broadcast, streaming, touring, and rental applications.

$30,000.00

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

CHAMMMVS4PLUS

Details

Features:
• 4 x 4K Video Output
• MediaMaster Pro Software
• Includes LED Mapper & Video Mapper
• NDI Support

Hardware Specifications:
• Processor: AMD Ryzen Threadripper PRO 5955WX
• Threads (Cores): 32(16)
• RAM: 32GB (4x 8GB) Crucial
• RAM Type: DDR4 3200 MHz SODIMM
• Graphics Card: nVIDIA RTX A4000 16GB / NVIDIA T400 4GB
• Power Input: powerCON TRUE1 110 to 240 VAC
• Max Power Consumption (mains): TBC
• System Drive: SSD 1 TB
• Storage Drive: SSD 1 TB
• System Restore Drive: USB 128 GB
• Interface Output: 2x DisplayPort – 4K
• Media Output: 4x DisplayPort – 4K
• Ethernet Output: 2x 10Gb/s (cat6A)
• Front USBs: 2 – USB 3.0 A Type
• Rear USBs: 4 x USB 3.0 A Type , 2 x USB-C
• Sync: NVIDIA PNY Quadro Sync 2
• Audio: 1- Audio/SMPTE/LTC/BPM
• DMX In/Out: Optional
• Genlock: Optional
• Input: 2x/4x/8x SDI (optional) / 2x/4x/8x HDMI (optional)

Software Specifications:
• Operating System: Windows 11 Pro
• MediaMaster Software: Pro
• Playback Layers: 48
• Surfaces: 250
• Outputs: 4
• Presets: 4096
• LED Mapper: Yes
• King Net Mapper: Yes
• Video Mapper: Yes
• Soft Edge / Geometric Correction: Yes
• NDI®5 : Yes
• CITP/MSEX: Yes
• GDTF Personality Export: Yes
• Factory System Restore: Yes

Control:
• Art-Net: Yes
• sACN: Yes
• Stand Alone Keyboard Control: Yes
• DMX Control: Yes
• Front Panel Control: Yes

Boxed Weights and Dimensions:
• Width: 600mm (23.62 inches)
• Depth: 810mm (31.88 inches)
• Height: 360mm (14.17 inches)
• Weight: 20.3 kg (44.75 lb)

Unit Weights and Dimensions:
• Width: 425mm (16.73 inches)
• Depth: 625mm (24.60 inches)
• Height: 177mm (6.96 inches) – 4U High
• Weight: 16 kg (35.27 lb)
