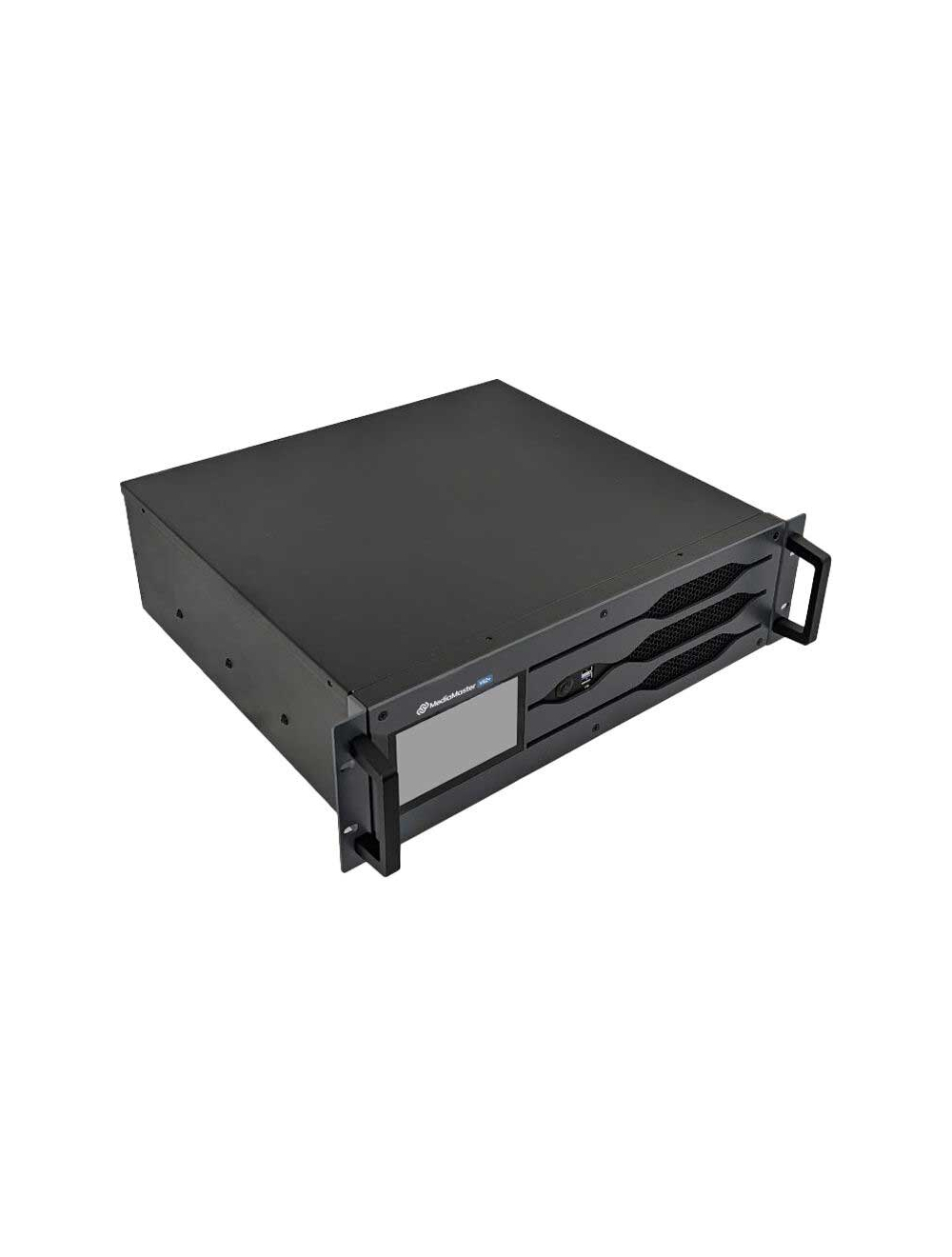

Chauvet Pro CHAMMMVS2PLUS MediaMaster VS2+ Media Server

Built for the demands of rental houses, this system is strong, reliable, and effortless to operate. Featuring 2 x 4K outputs powered by MediaMaster Pro, it delivers exceptional performance with uncompromising dependability.

$19,915.00

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

CHAMMMVS2PLUS

Details

Features:
• 2 x 4K Video Output
• MediaMaster Pro Software
• Includes LED Mapper & Video Mapper
• NDI Support

Hardware Specifications:
• Processor: Intel i5, 13500
• Threads (Cores): 20 (14)
• RAM: 16gb (2x 8GB) Crucial
• RAM Type: DDR4 3200 MHz SODIMM
• Graphics Card: NVIDIA RTX A2000 12GB NVIDIA T400 4GB
• Power Input: powerCON TRUE1 110 to 240 VAC
• Max Power Consumption (mains): TBC
• System Drive: SSD 1 TB
• Storage Drive: Uses System Drive
• System Restore Drive: USB 128 Gb
• Interface Output: 2 x MDP – 4K
• Media Output: 2 x MDP – 4K
• Ethernet Output: 2 x RJ45 2.5 Gigabit Lan
• Front USBs: 2 – USB3
• Rear USBs: 5 x USB 3.0 A Type , 1 x USB-C
• Inputs: 2x/4x SDI (Optional) 2x/4x HDMI (Optional)

Software Specifications:
• Operating System: Windows 11 Pro
• MediaMaster Software: Pro
• Playback Layers: 48
• Surfaces: 250
• Outputs: 2
• Presets: 4096
• LED Mapper: Yes
• King Net Mapper: Yes
• Video Mapper: Yes
• Soft Edge / Geometric Correction: Yes
• NDI®5 : Yes
• CITP/MSEX: Yes
• GDTF Personality Export: Yes
• Factory System Restore: Yes

Control:
• Art-Net: Yes
• sACN: Yes
• Stand Alone Keyboard Control: Yes
• DMX Control: Optional MagicDMX
• Front Panel Control: Yes

Boxed Weights and Dimensions:
• Width: 600mm (23.62 inches)
• Depth: 550mm (21.65 inches)
• Height: 300mm (11.81 inches)
• Weight: 14.2 kg (31.30 lb)

Unit Weights and Dimensions:
• Width: 430mm (5.63 inches)
• Depth: 405mm (7.68 inches)
• Height: 135mm (1.69 inches) – 3U High
• Weight: 10.4 kg (22.92 lb)
