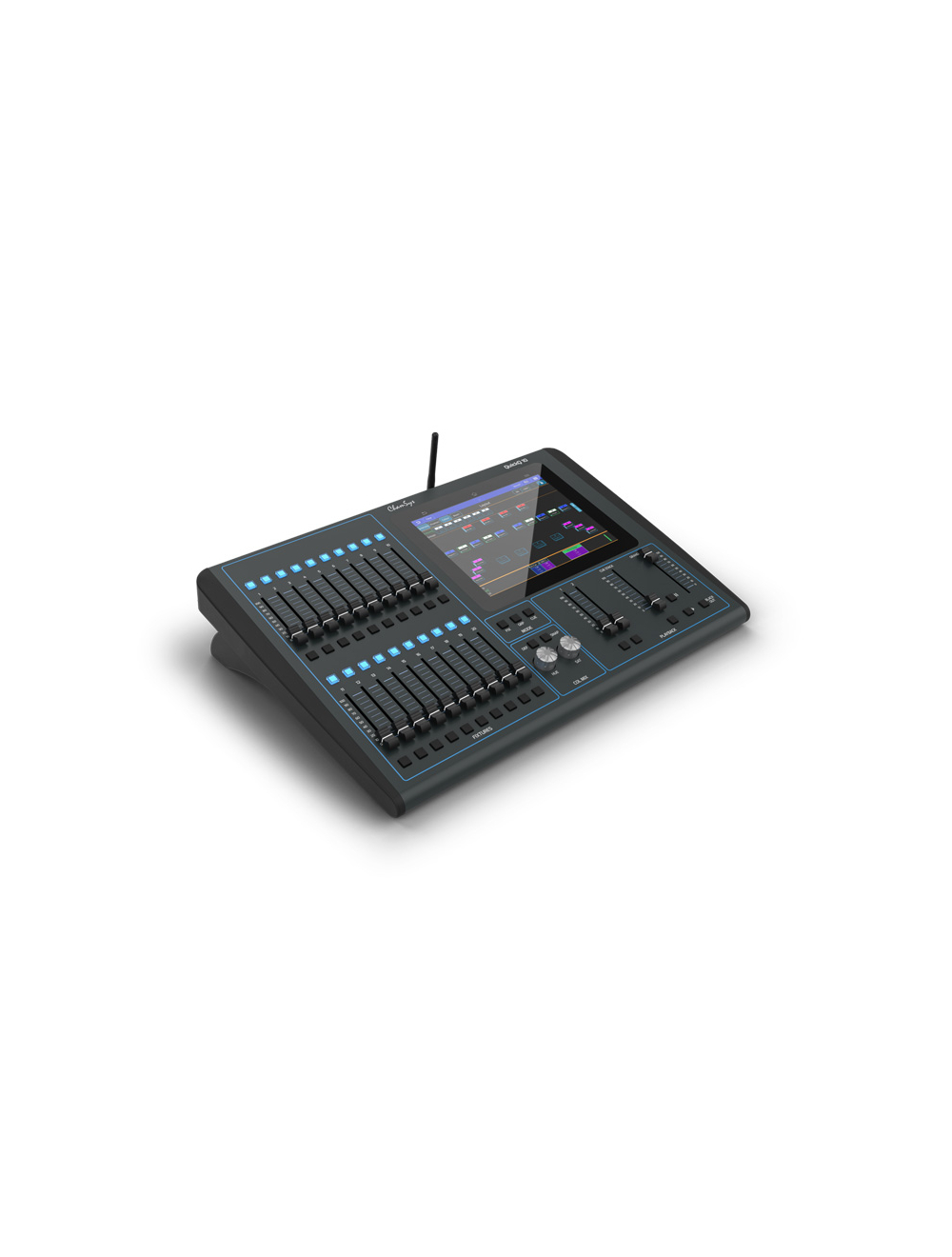

Chauvet Pro CHAMQUICKQ10 QuickQ 10 Console

QuickQ 10 is part of ChamSys QuickQ range of user friendly and affordable lighting control consoles. The QuickQ 10 is the perfect choice console for control of dimmer and LED colour mixing fixtures. The console features a large 9.7 inch touch screen utilising a smart phone like interface for setup, programming and playback of your show.

$2,930.00

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

CHAMQUICKQ10

Details

Overview
• Modelled on smartphone icon interfaces for ease of use
• Intuitive interface allowing simple control of all fixture attributes
• The interface supports gestures such pinch zoom and scrolling
• Easily connect to the remote app on iOS & Android devices via inbuilt Wi-Fi

Playback Faders
• 20 multi-function fixture faders with 3 different modes – Fixture, Group and Cue
• 3 multi-cue Playback faders: two Chase controllers and one Cue Stack, which are legended on screen
• The console features a dedicated Grand Master fader for overall level control

Colour Control
• A dedicated “colour control area” with Hue and Saturation encoders
• Select from inbuilt palettes and gel libraries using the touch screen
• Built in colour picker for use with LED fixtures

Networking
• QuickQ supports output of DMX over network via ArtNet/sACN/Pathport

Software
• Offline editor available for both Windows and Mac
• Regular software updates
• Easy Upgrades
• Automated Patching
• HSV Color Mixing
• Color Picker
• On Screen Pan/Tilt Trackpad
• Built-in FX
• Chase Support
• Master Cue Stack
• Execute Window
• Audio Triggering
• Tap to Time

Hardware Specifications
• Universes supported: 1
• Direct DMX Outputs 5-Pin XLR: 1
• Master Playback Faders: 2 Chase, 1 Cue Stack
• Multi-Function Fixture Faders: 20
• Bump Buttons: Yes
• Attribute Encoders: 0
• Dedicated Hue/Saturation Encoders: Yes
• Inbuilt 9.7” Multi-touch Display: Yes
• External Monitor: 1920 x 1080 HDMI
• Inbuilt Wi-Fi: Yes
• Network Port: 1
• USB Ports: 2
• Audio Input: 1
• Audio Output: 1*
• MIDI Ports in/out: No
• Max Power Consumption (mains): 60w

Software Specifications
• Max Number of DMX Channels: 512
• Max Number of Fixtures Supported: 512
• Max Number of Cue Stacks: 1
• Max Number of Chases: 2
• Midi & Midi Timecode Supported: No
• OSC Supported: Yes
• RDM Autopatch for fast show patching
• Fixture library of over 30,000 fixture files
• Built in FX generator
• Colour picker and Gel inbuilt Gel library
• Offline designer software available for Windows and Mac

Console Weights and Dimensions
• Width: 525mm (20.7 inches)
• Depth: 350mm (13.8 inches)
• Height: 106mm (4.2 inches)
• Weight: 4.07kg (8.97 lb)

Included Accessories
• USB Desk light: 1
• Dust cover: 1
• Tablet stand: 1
• Wi-Fi Antenna: 1
• 12V power supply: 1
• IEC power cable: 1

Boxed Weights and Dimensions
• Width: 680mm (26.8 inches)
• Depth: 420mm (16.5 inches)
• Height: 230mm (9 inches)
• Weight: 8kg (17.63 lb)

Flight Cased Weights and Dimensions
• Width: 650mm (25.6 inches)
• Depth: 490mm (19.3 inches)
• Height: 210mm (8.3 inches)
• Weight (console in flightcase): 16kg (35.27 lb)
