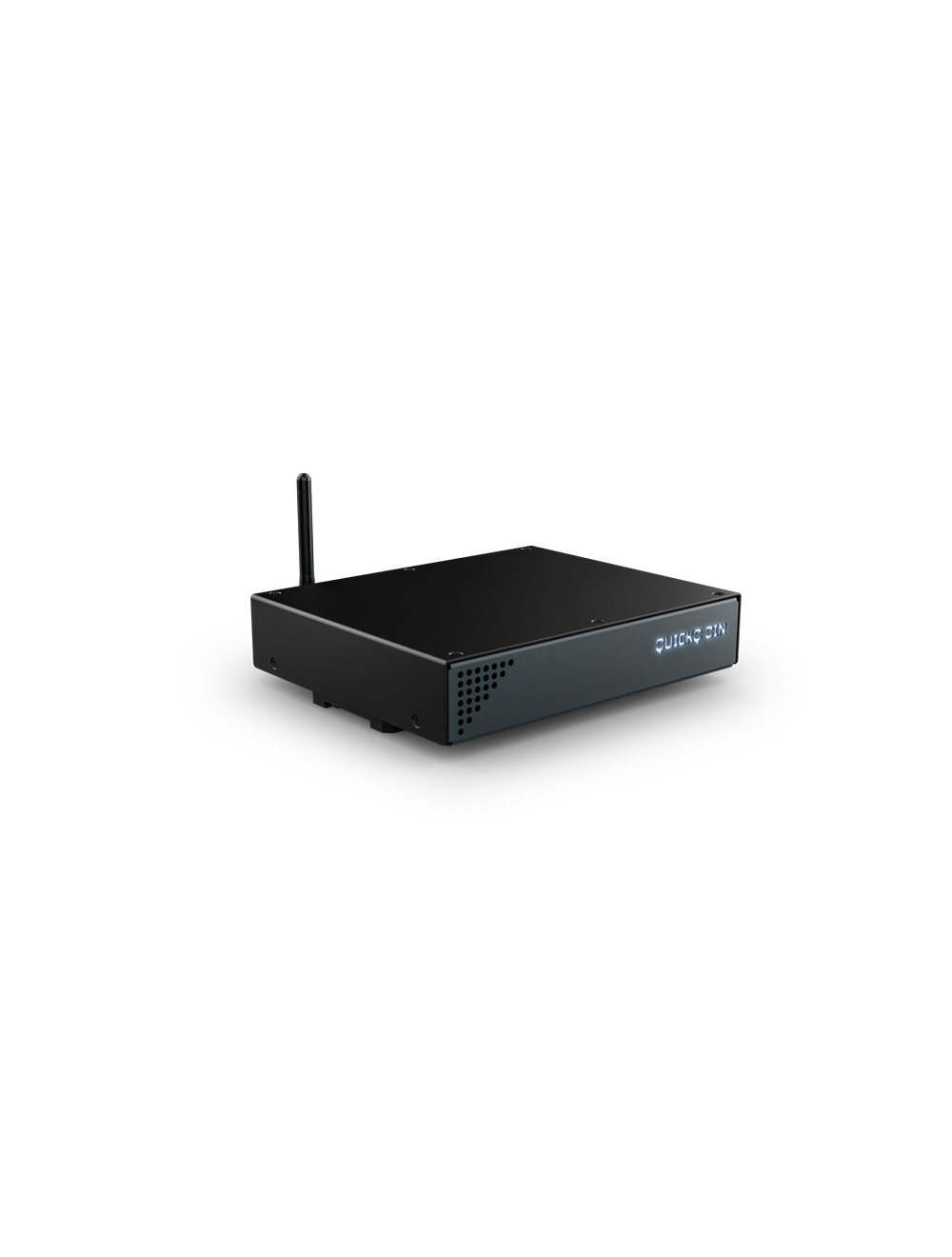

Chauvet Pro CHAMQUICKQDIN QuickQ DIN Console

The intuitive simplicity of QuickQ software in a space-saving DIN rail mount solution. QuickQ DIN supports all QuickQ features including Events, 10Scene and Executes, making it ideal for any installation where space is at a premium and control in a small package is required.

$3,145.00

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

CHAMQUICKQDIN

Details

Overview
• Ideal for installations and architectural settings
• Featuring four Universes of DMX output
• Two RDM enabled DMX outputs
• Inbuilt Wi-Fi for programming and remote control
• Four 10Scene ports for connection of up to forty 10Scene wall plate
• Features the same intuitive software as QuickQ Consoles
• Simple Hot-Takeover mode allowing an external console to take control

Hardware Specifications
• Universes supported: 4
• Direct DMX Outputs Pheonix Screw Terminal: 2
• External Monitor: 1920 x 1080 HDMI
• Inbuilt Wi-Fi: Yes
• Network Port: 1
• USB Ports: 2
• Power Input: 12v DC

Software Specifications
• Max Number of DMX Channels: 2048
• Max Number of Fixtures Supported: 2048
• OSC Supported: Yes
• RDM Autopatch for fast show patching
• Fixture library of over 48,000 fixture files
• Built in FX generator
• Colour picker and Gel inbuilt Gel library
• RDM Autopatch for fast show patching
• Offline designer software available for Windows and Mac
• Supported fixtures: All – LEDs, Dimmers & Moving Lights

Included Accessories
• Wi-Fi Antenna: 1
• DIN Rail Mount Clips: 2
• 10Scene Connectors: 4
• 12v Power Supply: 1

Rack Weights and Dimensions
• Width : 200mm (7.8 inches)
• Depth: 165mm (6.5 inches)
• Height: 40mm (1.6 inches)
• Weight: 0.65kg (1.43lb)

Boxed Weights and Dimensions
• Width: 268mm (10.5 inches)
• Depth: 220mm (8.7 inches)
• Height: 130mm (5.1 inches)
• Weight: 1.04kg (2.29 lb)
