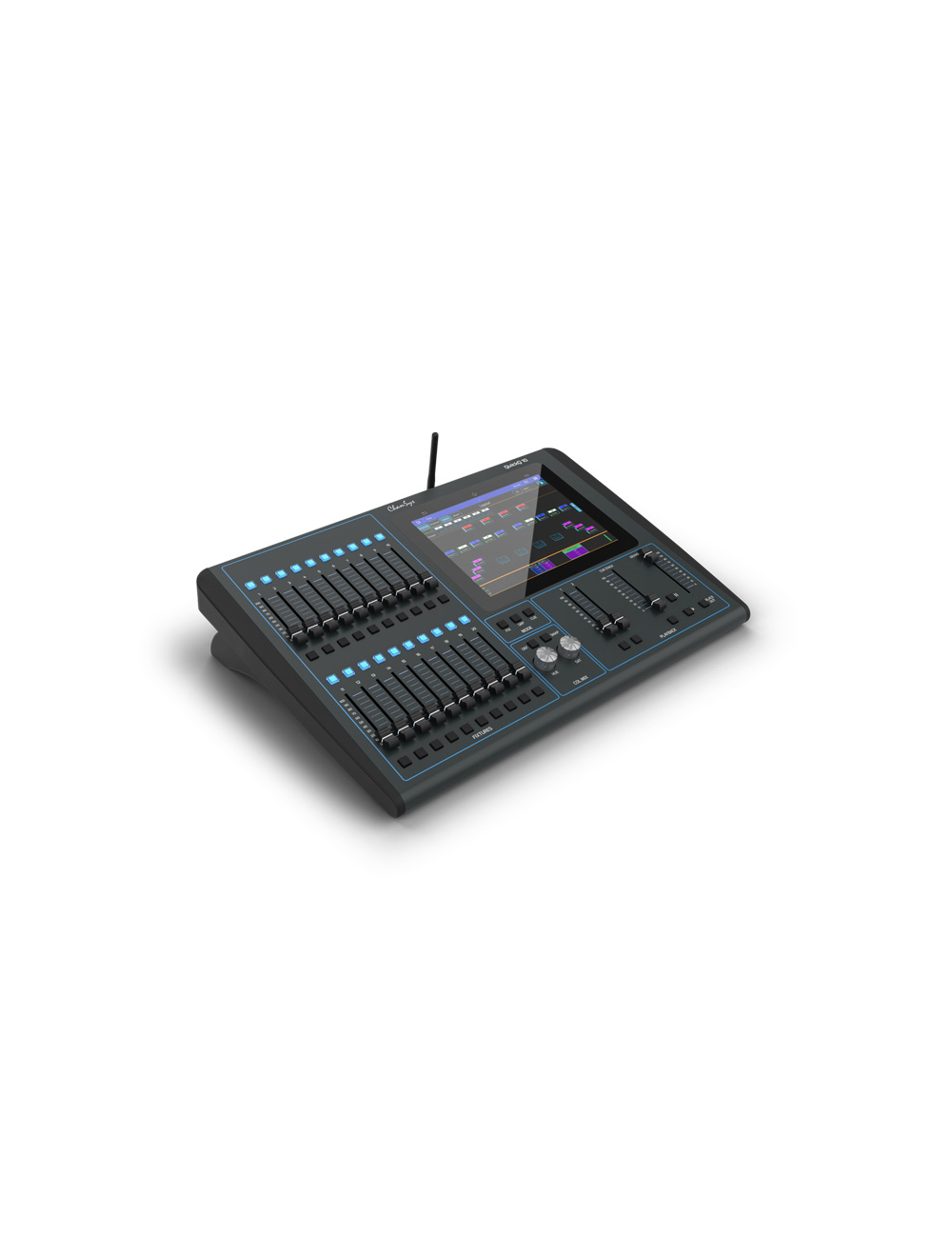

Chauvet Pro CHAMQUICKQ20 QuickQ 20 Console

Overview
• Modelled on smartphone icon interfaces for ease of use
• Intuitive interface allowing simple control of all fixture attributes
• The interface supports gestures such pinch zoom and scrolling
• Easily connect to the remote app on iOS & Android devices via inbuilt Wi-Fi

Playback Faders
• 20 multi-function fixture faders with 3 different modes – Fixture, Group and Cue
• 10 multi-cue Playback faders, which are legended on screen
• The console features a dedicated Grand Master fader for overall level control

Colour Control
• A dedicated “color control area” with Hue and Saturation encoders
• Select from inbuilt palettes and gel libraries using the touch screen
• Built in colour picker for use with LED fixtures

Networking
• QuickQ supports output of DMX over network via ArtNet/sACN/Pathport
• Remote triggering of Playbacks and Execute items via OSC

Software
• Offline editor available for both Windows and Mac
• Regular software updates
• Easy Upgrades
• Automated Patching
• HSV Color Mixing
• Color Picker
• Built-in FX
• Chase Support
• Master Cue Stack
• Execute Window
• Audio Triggering
• Tap to Time

Hardware Specifications
• Universes supported: 2
• Direct DMX Outputs 5-Pin XLR: 2
• Master Playback Faders: 10
• Multi-Function Fixture Faders: 20
• Bump Buttons: Yes
• Attribute Encoders: 4
• Dedicated Hue/Saturation Encoders: Yes
• Inbuilt 9.7” Multi-touch Display: Yes
• External Monitor: 1920 x 1080 HDMI
• Inbuilt Wi-Fi: Yes
• Network Port: 1
• USB Ports: 2
• Audio Input: 1
• Audio Output: 1*
• MIDI Ports in/out: Yes*
• Max Power Consumption (mains): 60w

Software Specifications
• Max Number of DMX Channels: 1024
• Max Number of Fixtures Supported: 1024
• Max Number of Cue Stacks: 10
• Max Number of Chases: 10
• Midi & Midi Timecode Supported: Yes
• OSC Supported: Yes
• RDM Autopatch for fast show patching
• Fixture library of over 30,000 fixture files
• Built in FX generator
• Colour picker and Gel inbuilt Gel library
• Offline designer software available for Windows and Mac

Console Weights and Dimensions
• Width: 565mm (22.2 inches)
• Depth: 350mm (13.8 inches)
• Height: 106mm (4.2 inches)
• Weight: 5.2kg (11.46 lb)

Included Accessories
• USB Desk light: 1
• Dust cover: 1
• Tablet stand: 1
• Wi-Fi Antenna: 1
• 12V power supply: 1
• IEC power cable: 1

Boxed Weights and Dimensions
• Width: 680 mm (26.8 inches)
• Depth: 420 mm (16.5 inches)
• Height: 230 mm (9 inches)
• Weight: 8kg (17.63 lb)

Flight Cased Weights and Dimensions
• Width: 650 mm (25.6 inches)
• Depth: 490 mm (19.3 inches)
• Height: 210 mm (8.3 inches)
• Weight (console in flightcase): 16kg (35.27 lb)
