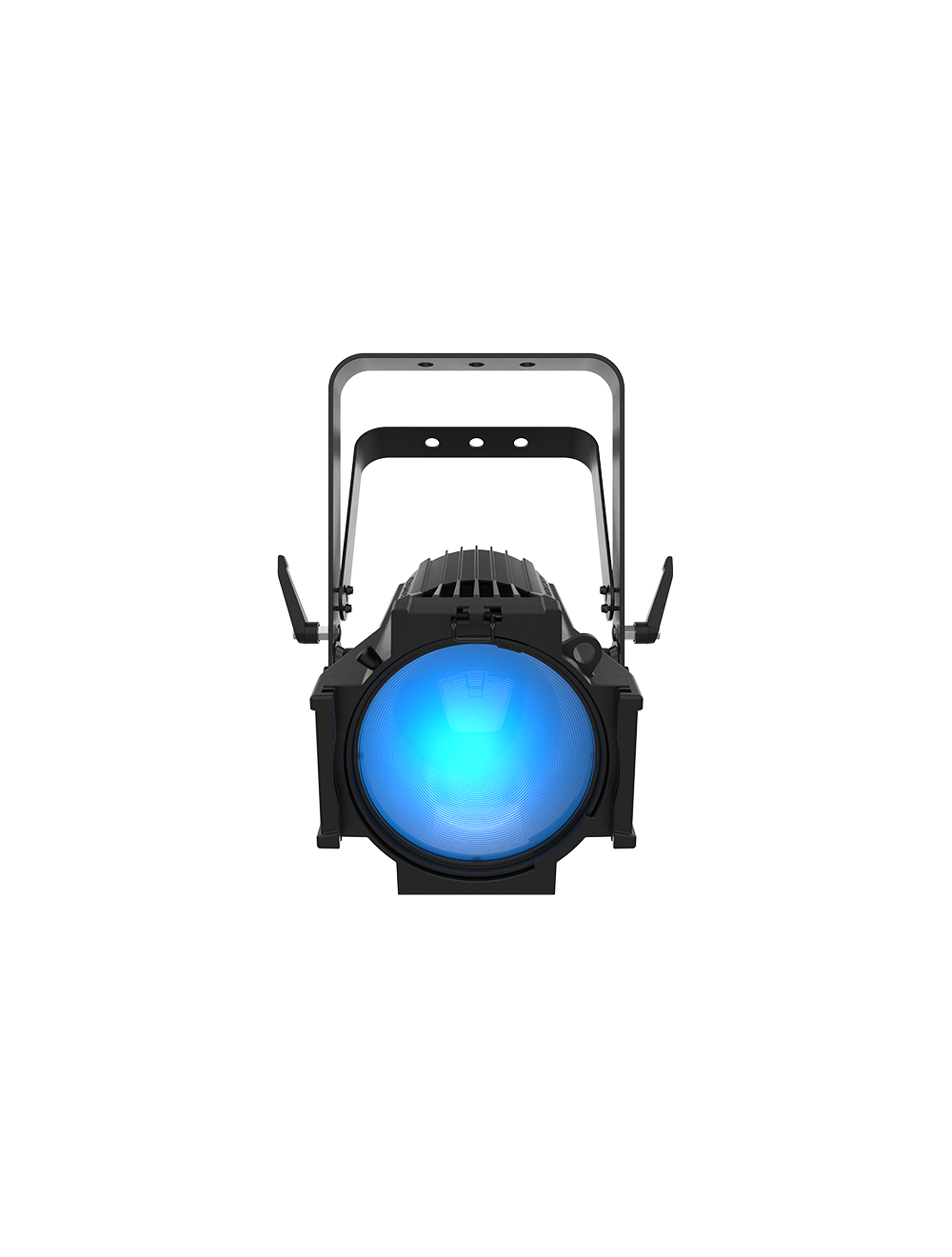

Chauvet Pro OVATIONP56FC-2 Ovation P-56 FC 62 LEDs 496 Watt 100-240 Volt Full Color PAR Style Fixture with Homogenized Single Source of Light

AT A GLANCE
• Full color PAR style fixture with homogenized single source of light
• Interchangeable lens plates included for medium and wide beam angles
• Flat, even field of light
• Quiet operation for use in any situation with fan speed control
• RDM and variable Pulse Width Modulation for setup ease
• Accepts standard 7.5” beam shaping accessories
• 16-bit dimming resolution for smooth fades

SPECIFICATIONS
OPTICAL
• Light Source: 62 LEDs (12 red, 11 green, 11 blue, 14 amber, 14 lime) 6 to 8 W, (1 A), 50,000 hours life expectancy.
• Color Temperature (range): 2800 to 6500 K
• Color Temperature (at full): 6229 K
• CRI (3200): 87.9
• Field Angle (Narrow Lens): 24.7°
• Beam Angle (Narrow Lens):12.8°
• Beam Angle (Medium Lens): 23.2°
• Beam Angle (Wide Lens): 73.2°
• Field Angle (Medium Lens): 40.9°
• Field Angle (Wide Lens): 103.7°
• Iluminance (Narrow Lens): 3,404 lux @ 5m
• Illuminance (Medium Lens): 1,251 lux @ 5 m
• Illuminance (Wide Lens): 197 lux @ 5 m
• Iluminance (Narrow Lens): 3,404 lux @ 5m
• Illuminance (Medium Lens): 1251 lux @ 5 m
• Illuminance (Wide Lens): 197 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL
• Dimensions: Dimensions: 17.80" x 14.88" x 10.63"
• Weight: 15.65 lb (7.10 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CONNECTIONS
• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL
• Control Protocol: DMX, RDM
• DMX Channels: 1, 3, 5, 7, 10, 12, 13, 16 or HSV
• Modes/Personalities: 9 personalities (1, 3, 5, 7, 10, 12, 13, 16, HSV)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 7 units @ 100 V; 8 units @ 120 V; 15 units @ 208 V; 16 units @ 230 V; 16 units @ 240 V
• Power and Current: 167 W, 1.68 A @ 100 V, 60 Hz [4.6 A inrush]
• Power and Current: 161 W, 1.36 A @ 120 V, 60 Hz [6.0 A inrush]
• Power and Current: 160 W, 0.80 A @ 208 V, 60 Hz [8.2 A inrush]
• Power and Current: 159 W, 0.75 A @ 230 V, 50 Hz [9.8 A inrush]
• Power and Current: 158 W, 0.73 A @ 240 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, FCC
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• Noise Level (Idle): 31.5 dB(A) @ 1 m
• Noise Level (Auto): 31.4 dB(A) @ 1 m
• Noise Level (On): 31.3 dB(A) @ 1 m
• Noise Level (Off): 4.0 dB(A) @ 1 m
• Noise Level (silent): 19.3 dB(A) @ 1 m

WHAT'S INCLUDED
• Ovation P-56FC
• Seetronic Powerkon IP65 power cord
• Gel frame (7.5 in/191 mm accessories)
• Narrow, Medium and Wide Lens

OPTIONAL ACCESSORIES
• Professional Clamps: CTC-50HC, CTC-50HCN
• TRUE1 Style Power Extension cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation F 7.5” Barndoor V2
• Ovation 60 deg, 7.5” Honeycomb

ORDERING INFO
• Item Code: 03031500
