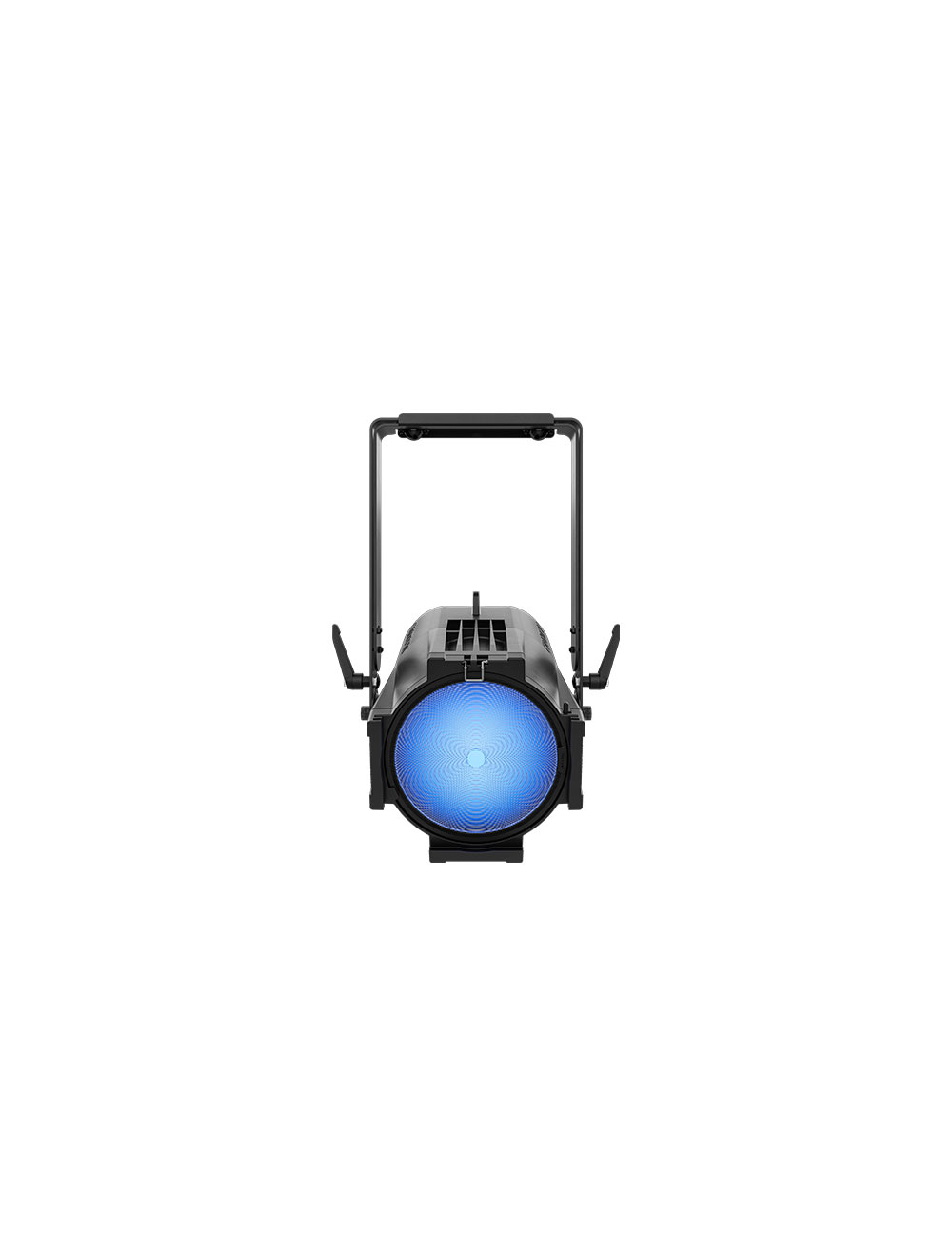

Chauvet Pro OVATIONREVEP3IP Ovation Rêve P-3 IP 80 LEDs 624 Watt 100-240 Volt with Four Interchangeable Lenses, One UnrivaLED Light Engine

AT A GLANCE
• Full-spectrum LED PAR lighting fixture for rental/production use as well as special event and theatre.
• Fully IP65 rated for seasonal use indoors or out
• Interchangeable Narrow, Medium, Wide and Very Wide lenses.
• USB port for fixture software updates
• Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
• +/- Green adjustment and emulated red-shift via DMX or on-board control

SPECIFICATIONS
OPTICAL
• Light Source: 80 LEDs (10 red, 10 green, 10 blue, 20 amber, 30 mint) 4.4 to 7.8 W, (2.4 A), 50,000 hours life expectancy.
• Color Temperature (range): 2800 to 8000 K
• Color Temperature (at full): 5399 K
• Beam Angle (Narrow Lens): 11.9°
• Beam Angle (Medium Lens): 25.6°
• Beam Angle (Wide Lens): 29.3°
• Beam Angle (Very Wide Lens): 43.5°
• Field Angle (Narrow Lens): 20.8°
• Field Angle (Medium Lens): 37.8°
• Field Angle (Wide Lens): 43.1°
• Field Angle (Very Wide Lens): 87.9°
• Lumens (Narrow Lens): 10,051
• Lumens (Medium Lens): 10,079
• Lumens (Wide Lens): 9,936
• Lumens (Very Wide Lens): 8,380
• Illuminance (Medium Lens): 1,950 lux @ 5 m
• Illuminance (Wide Lens): 1,475 lux @ 5 m
• Illuminance (Very Wide Lens): 401 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 25 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL
• Dimensions: Dimensions: 21.85" x 14.37" x 14.17"
• Weight: 26.24 lb. (11.90 kg)
• Exterior Color: Black
• Housing Material: Aluminum diecast
• Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CONNECTIONS
• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB

CONTROL
• Control Protocol: DMX, RDM
• DMX Channels: 1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV
• Modes/Personalities: 9 personalities (1, 4, 5, 7, 11, 13ch1, 13ch2, 17, HSV)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 5 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V;
• Power and Current: 274 W, 2.31 A @ 120 V, 60 Hz
• Power and Current: 267 W, 1.38 A @ 208 V, 60 Hz
• Power and Current: 265 W, 1.25 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, FCC, UKCA
• IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
• Noise Level (Idle): 17.4 dB(A) @ 1 m
• Noise Level (Auto): 30.7 dB(A) @ 1 m
• Noise Level (On): 31.9 dB(A) @ 1 m
• Noise Level (Off): 2.3 dB(A) @ 1 m
• Noise Level (Silent): 11.3 dB(A) @ 1 m
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
• Ovation Reve P-3 IP
• Seetronic Powerkon power cord
• Omega bracket with mounting hardware
• Narrow, Medium, Wide, Very Wide Lens
• Gel Frame

OPTIONAL ACCESSORIES
• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• TRUE1 Style Power Extension Cables
• 5-pin IP65 DMX Cables
• RDM2go
• USB Jump Drive
• Ovation F 7.5” Barndoor V2
