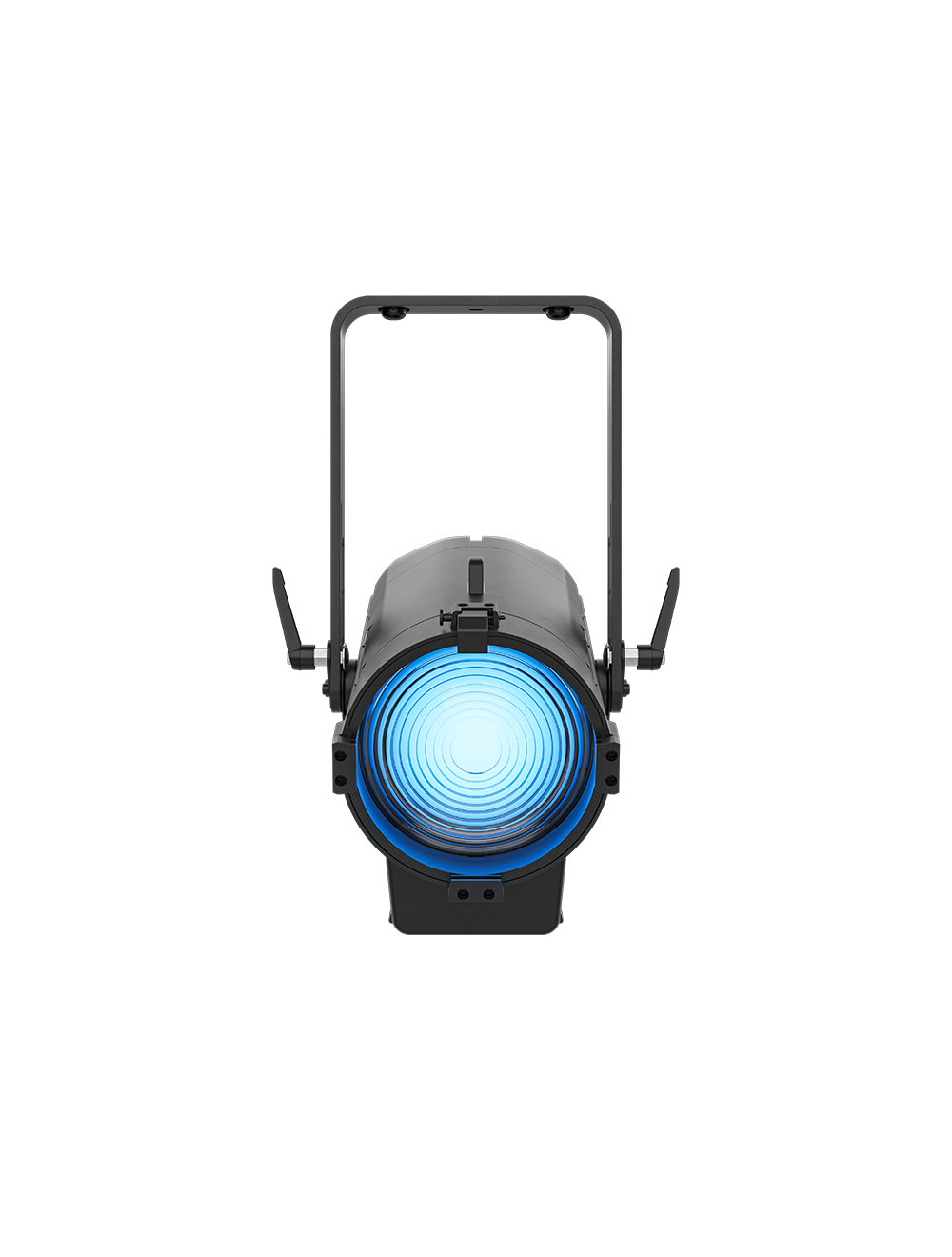

Chauvet Pro OVATIONREVEF3IP Ovation Rêve F-3 IP 126 LEDs 945 Watt 100-240 Volt Motorized Fresnel with Full Spectrum (RGBAM) Rêve Light Engine

AT A GLANCE
• Full-spectrum LED fresnel lighting fixture for theatre, film and production
• Fully IP65 rated for seasonal use indoors or out
• Addition on-board control for multiple parameters via 3 control dials
• Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
• Virtual color wheel with color matched to popular gel colors
• +/- Green adjustment and emulated red-shift via DMX or on-board control
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio, film and theatre applications
• Ultra-smooth 18-bit dimming curves and speeds to complement any lighting scheme.
• Innovative adjustable yoke for mounting in low clearance areas
• USB Port for Software updates

SPECIFICATIONS
OPTICAL
• Light Source: 126 LEDs (22 red, 14 green, 16 blue, 6 royal blue, 28 amber, 40 mint) 5.8 to 7.5 W, (1.95 A) 50,000 hours life expectancy.
• Color Temperature (range): 2800 to 8000 K
• Color Temperature (at full): 5864 K
• Front lens diameters: 210.8 mm
• CRI: 96
• Beam Angle: 10.6° to 68.2°
• Field Angle: 18.3° to 90.4°
• Cutoff Angle: 25.3° to 99.5°
• Zoom Range: 10.6° to 99.5°
• Lumens (narrow): 5232lm
• Lumens (wide): 13374lm
• Illuminance (narrow): 4869lux @ 5 m
• Illuminance (wide): 482 lux @ 5 m
• Illuminance (50%): 1587 lux @ 5 m
• Selectable PWM: 750 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL
• Dimensions: 24.21" x 16.14" x 15.35"
• Weight (Standard Yoke): 29.76 lb (13.50 kg)
• Weight (Pole Yoke): 34.0 lb (15.5 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy
• Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CONNECTIONS
• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV
• Modes/Personalities: 8 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV)

CONTROL
• Control Protocol: DMX, RDM
• DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV
• Modes/Personalities: 8 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
• Power and Current: 532 W, 4.46 A @ 120 V, 60
• Power and Current: 519 W, 2.56 A @ 208 V, 60 Hz
• Power and Current: 526 W, 2.24 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, FCC
• IP Rating: IP65, dry location
• Noise Level (Idle): 34.5 dB(A) @ 1 m
• Noise Level (Auto): 37.2 dB(A) @ 1 m
• Noise Level (On): 38.7 dB(A) @ 1 m
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
• Ovation Reve F-3 IP
• Seetronic Powerkon power cord
• Gel frame
• (1) 140mm Omega bracket with mounting hardware

OPTIONAL ACCESSORIES
• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• TRUE1 Style Power Extension Cables
• 5-pin IP65 DMX Cables
• RDM2go
• USB Jump Drive
