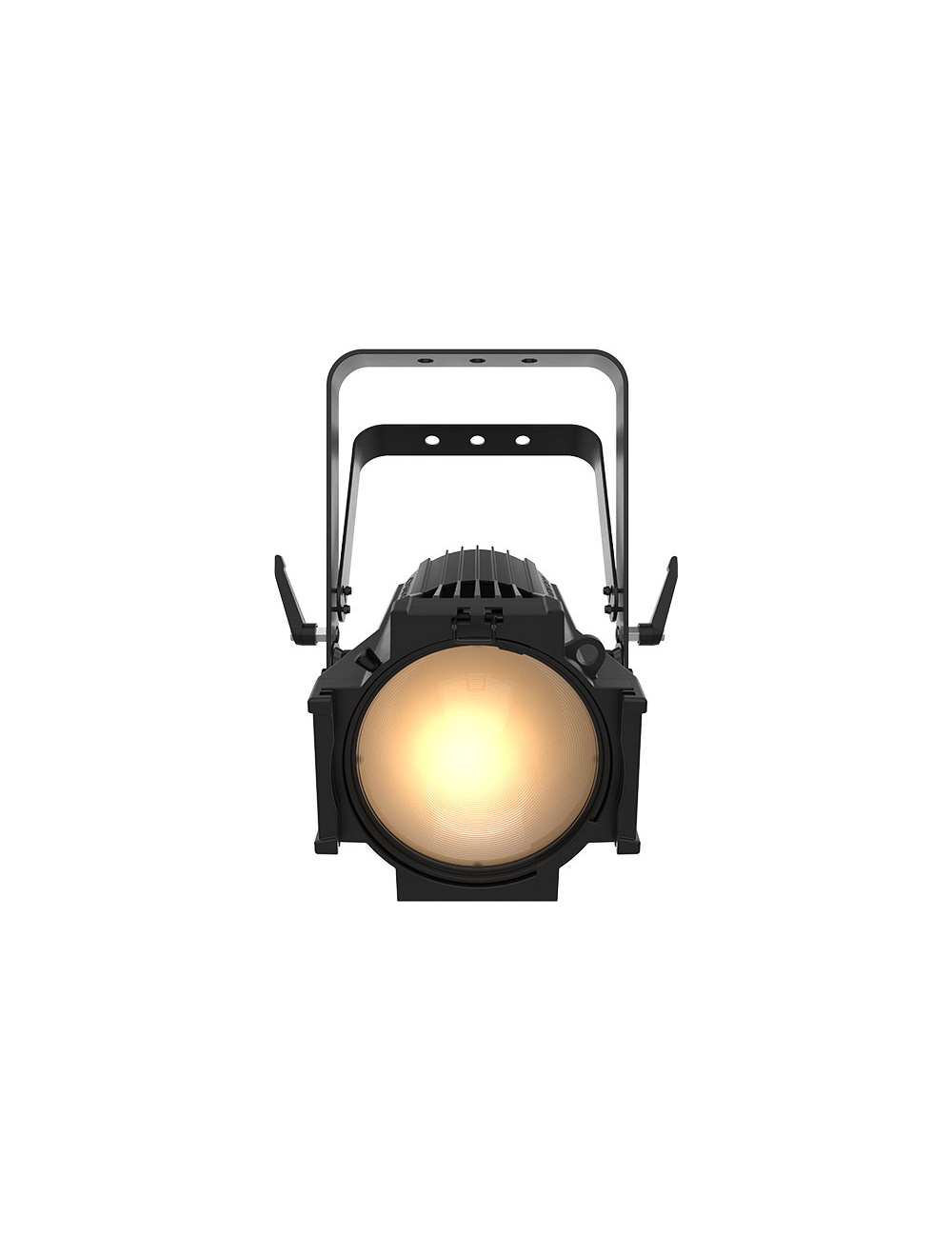

Chauvet Pro OVATIONP56WW-2 Ovation P-56 WW 1 LEDs 230 Watt 100-240 Volt Warm White PAR Style Fixture

AT A GLANCE
• Warm white PAR style fixture with output comparable to a 1,000 W PAR 64 lamp
• 16-bit dimming resolution for smooth fades
• Compact design with homogenous single source of light
• Flat, even field of light
• Quiet operation for use in any situation
• Interchange lens plates included for narrow, medium and wide beam angles

SPECIFICATIONS
OPTICAL
• Light Source: 1 LEDs (WW) 230 W, (3.2 A), 3228 K, 50,000 hours life expectancy
• Color Temperature (at full): 3228 K
• CRI: 97.9
• Beam Angle (Narrow lens): 11.8°
• Beam Angle (Medium lens): 23.9°
• Beam Angle (Wide lens): 70.9°
• Beam Angle (Wide lens w/ egg crate): 37°
• Field Angle (Narrow lens): 26.6°
• Field Angle (Medium lens): 40°
• Field Angle (Wide lens): 106°
• Field Angle (Wide lens w/egg crate): 68°
• Lumens (w/Narrow lens): 10,326
• Lumens (w/Medium lens): 10,728
• Lumens (w/Wide lens): 10,687
• Illuminance (w/Narrow Lens): 5,468 lux @ 5 m
• Illuminance (w/Medium Lens): 2,264 lux @ 5 m
• Illuminance (w/Wide Lens): 363 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 29 Hz
• Dim Modes: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL
• Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
• Weight: 11.6 lb (5.3 kg)
• Exterior Color: Black
• Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CONNECTIONS
• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB-C

CONTROL
• Control Protocol: DMX, RDM
• DMX Channels: 1, 2, 3 or 6
• Modes/Personalities: 4 personalities (1, 2, 3, 6)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 5 units @ 100 V; 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V; 15 units @ 240 V
• Power and Current: 210 W, 2.278 A @ 100 V, 60 Hz
• Power and Current: 205 W, 1.806 A @ 120 V, 60 Hz
• Power and Current: 197 W, 1.023 A @ 208 V, 60 Hz
• Power and Current: 195 W, 0.916 A @ 230 V, 50 Hz
• Power and Current: 194 W, 0.886 A @ 240 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, FCC
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
• Ovation P-56WW
• Seetronic Powerkon IP65 power cord
• Gel Frame (7.5 in/191 mm accessories)
• Wide, medium and narrow lenses

OPTIONAL ACCESSORIES
• Professional Clamps: CTC-50HC, CTC-50HCN
• Seetronic Powerkon cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation F 7.5″ Barndoor
• Ovation 60deg, 7.5” Honeycomb

ORDERING INFO
• Item Code: 03031475
