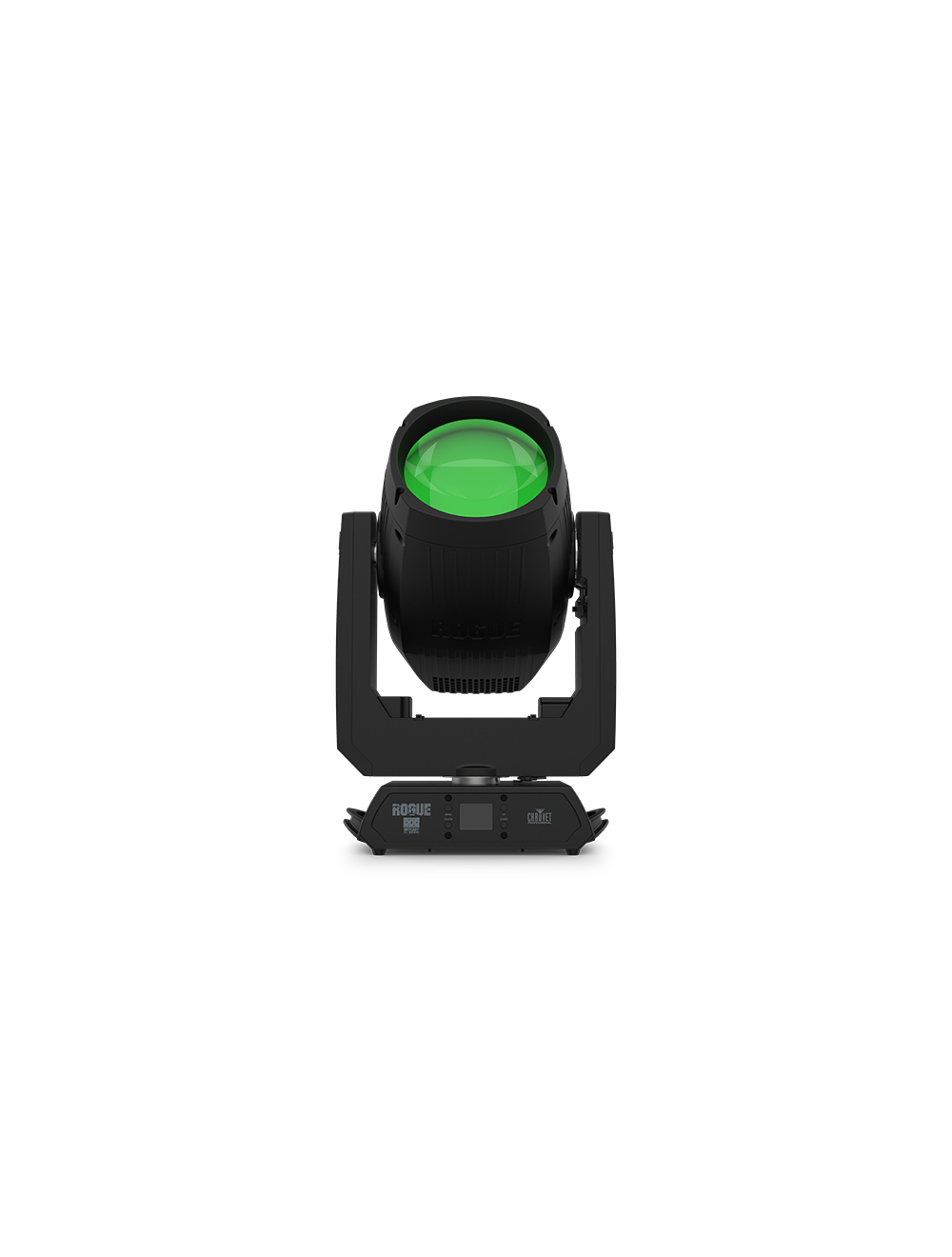

Chauvet Pro ROGUEOUTCAST1LBEAM Rogue Outcast 1L Beam 1 LED 140 Watt 100-240 Volt High Powered IP65 Rated LED

AT A GLANCE
• Fully featured, high powered IP65 rated LED beam fixture
• Lightweight and durable aluminum/magnesium alloy body
• Fast and precise movement of pan and tilt functions
• Individually controllable and layerable 5- and 8-facet prisms
• Frost for softening beam edges and effects
• 5-pin DMX input/output connections
• Tight 1.4° beam for extremely focused areal effects
• RDM enabled for remote addressing and troubleshooting
• 7 rotating and 7 static gobos on one wheel for dynamic gobo effects
• Easy to read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility
• USB-C port for uploading software

SPECIFICATIONS
OPTICAL
• Light Source: 1 LED (CW) 140 W, (4 A), 50,000 hours life expectancy
• Color Temperature (at full): 6928 K
• Front lens diameter: 160 mm
• CRI: 69.3
• Beam Angle: 1.4°
• Field Angle: 1.7°
• Cutoff Angle: 1.8°
• Lumens – Source: 5500
• Lumens – Output: 3218
• Illuminance (total): 224,670 lux @ 5 m

DYNAMIC EFFECTS
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 14 + white, split colors, continuous scroll at variable speeds
• Gobos: 14 + open (14 metal), 7 rotating, 7 static, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobo Size: Gobo Wheel (rotating): Positions 2, 4, 6, 8, 10, 12 and 14 (metal); size: 9.8 mm (outside), 5 mm (image), 0.6 mm (max. thickness)
• Dimmer: Electronic
• Shutter/Strobe: Motorized
• Focus: Motorized
• Frost: Motorized
• Prism: 5 Facets, motorized, linear, rotating
• Prism: 8 Facets, motorized, round, rotating
• Move-in-Black: Yes

CONSTRUCTION / PHYSICAL
• Dimensions: 22.64" x 13.78" x 15.75"
• Weight: 39.02 lb (17.70 kg)
• Exterior Color: Black
• Housing Material: Aluminum/Magnesium diecast

CONNECTIONS
• Power Connection: Bare ended to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP rated
• Cable Length (power): 5 ft (1.5 m)

CONTROL
• Control Protocol: DMX, RDM
• DMX Channels: 17 or 19
• Modes/Personalities: 2 personalities (17, 19)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 233 W, 2.08 A @ 120 V, 60 Hz
• Power and Current: 226 W, 1.15 A @ 208 V, 60 Hz
• Power and Current: 223 W, 1.04 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, UKCA,
• IP Rating: IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)
• Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
• Maximum Ambient Temperature (ta): 45° C / 113° F
• Noise Level (Idle): 24.7 dB(A) @ 1 m
• Noise Level (Max): 35.3 dB(A) @ 1 m
• Noise Level (Auto): 36.4 dB(A) @ 1 m
• Noise Level (ECO): 36.5 dB(A) @ 1 m
• Noise Level (Full): 43.3 dB(A) @ 1 m

WHAT'S INCLUDED
• Rogue Outcast 1L Beam
• Seetronic Powerkon IP65 power cord
• (2) Omega brackets with mounting hardware

OPTIONAL ACCESSORIES
• Clamps
• IP65 5 pin DMX Cables
• IP65 PowerKon Extension cables
• Flight Case
