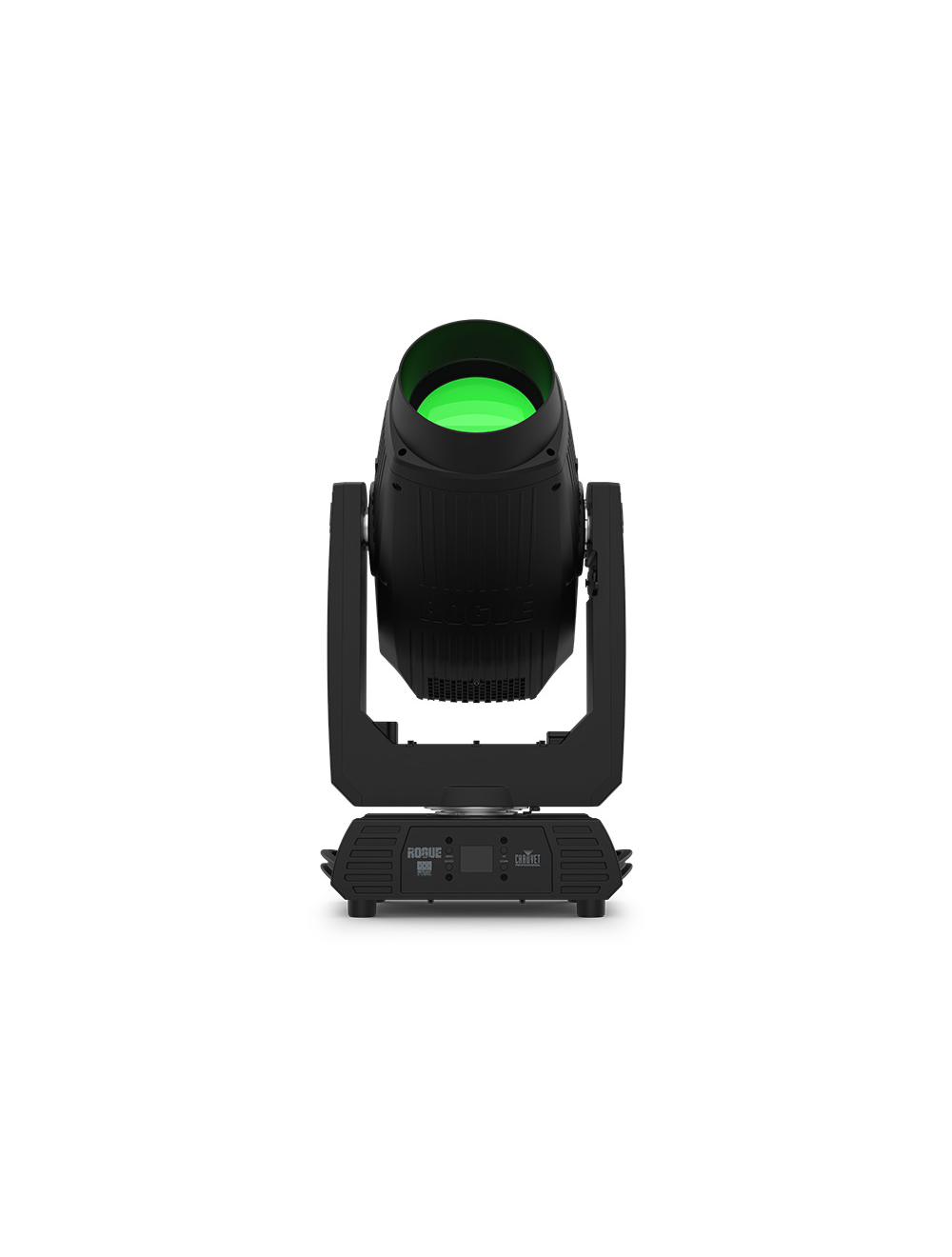

Chauvet Pro ROGUEOUTCAST2HYBRID Rogue Outcast 2 Hybrid Ushio NSL 400 Watt 100-240 Volt High Powered Spot/Beam/Wash Combination

AT A GLANCE
• Fully featured, IP65 rated, high powered Spot/Beam/Wash combination fixture with an Ushio 400 W, 6500 K with 6,000 hour life expectancy lamp, 2 gobo wheels, 2 layerable prisms, large zoom range, and lightweight aluminum/magnesium housing
• Individually controllable and layerable 5 facet linear and 8 facet round prisms for maximizing visual impact
• Frost and beam flattening options for even light distribution
• Tight 0.9° narrow beam angle for focused air effects
• Linear zoom of 0.9° to 20.7° in beam mode, 1.4° to 37.2°in spot mode and 5.4° to 41.7°in wash mode for coverage in any application
• 9 rotating and 13 static gobos for massive visual effect
• DMX and RDM protocol control
• True 1 compatible power input
• Easy to read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility
• USB-C port for uploading software

SPECIFICATIONS
OPTICAL
• *Test lab conditions. May vary depending on several factors including but not limited to: Environmental conditions, power/voltage, usage patterns, (on/off power cycling), control, and dimming.
• Light Source: Ushio NSL-400L W lamp, 8000 K, 6,000 hours life expectancy
• Color Temperature (at full): 7009K
• Front Lens size: 160mm
• CRI: 86.1
• Beam Angle: 1.4° to 14.5° (Spot mode)
• Field Angle: 2.8° to 30° (Spot mode)
• Cutoff Angle: 3.5° to 37.2° (Spot mode)
• Beam Angle: 0.9° to 6.7° (Beam mode)
• Field Angle: 1.7° to 18.1° (Beam mode)
• Cutoff Angle: 2.1° to 20.7° (Beam mode)
• Beam Angle: 5.4° to 32.1° (Wash mode)
• Field Angle: 9.5° to 39.4° (Wash mode)
• Cutoff Angle: 11.9° to 41.7° (Wash mode)
• Zoom Range (Spot mode):1.4° to 37.2°
• Zoom Range (Beam mode): 0.9° to 20.7°
• Zoom Range (Wash mode): 5.4° to 41.7°
• Lumens – Output: 16,033
• Illuminance (1.4°): 790,297lux @ 5 m (Spot mode)
• Illuminance (37.2°): 6,787 lux @ 5 m (Spot mode)
• Illuminance (0.9°): 180,594 lux @ 15 m (Beam mode)
• Illuminance (20.7°): 2,158 lux @ 15 m (Beam mode)
• Illuminance (9.1°): 30,289 lux @ 5 m (Wash mode)
• Illuminance (41.7°)1,309 lux @ 5 m (Wash mode)

DYNAMIC EFFECTS
• Pan and Tilt: 540°/260°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/260°, 180°, 90° tilt
• Colors: 13 + White, split colors, continuous scroll at variable speeds
• Gobos (1): 9 + open (9 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 13 + open (13 metal), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): 16 mm (outside), 12 mm (image), 1.1 mm (max. thickness)
• Dimmer: Motorized
• Shutter/Strobe: Motorized
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Prism (1): 5 Facets, motorized, rotating
• Prism (2): 8 Facets, motorized, rotating
• Move-in-Black: Yes

CONSTRUCTION / PHYSICAL
• Dimensions: 30.71" x 13.39" x 16.93"
• Weight: 63.49 lb (28.80 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum diecast, High-impact flame-retardant polymer

CONNECTIONS
• Power Connection: Bare-wired to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP rated
• Cable Length (power): 5 ft (1.5 m)

CONTROL
• Control Protocol: DMX, RDM
• DMX Channels: 20 or 25
• Modes/Personalities: 2 personalities (20, 25)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 581 W, 4.95 A @ 120 V, 60 Hz
• Power and Current: 565 W, 2.76 A @ 208 V, 60 Hz
• Power and Current: 568 W, 2.53 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, CB, UKCA
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
• Rogue Outcast 2 Hybrid
• Seetronic Powerkon IP65 power cord
• 2 Omega brackets with mounting hardware

OPTIONAL ACCESSORIES
• Clamps
• DMX Cables
• Flight Cases
