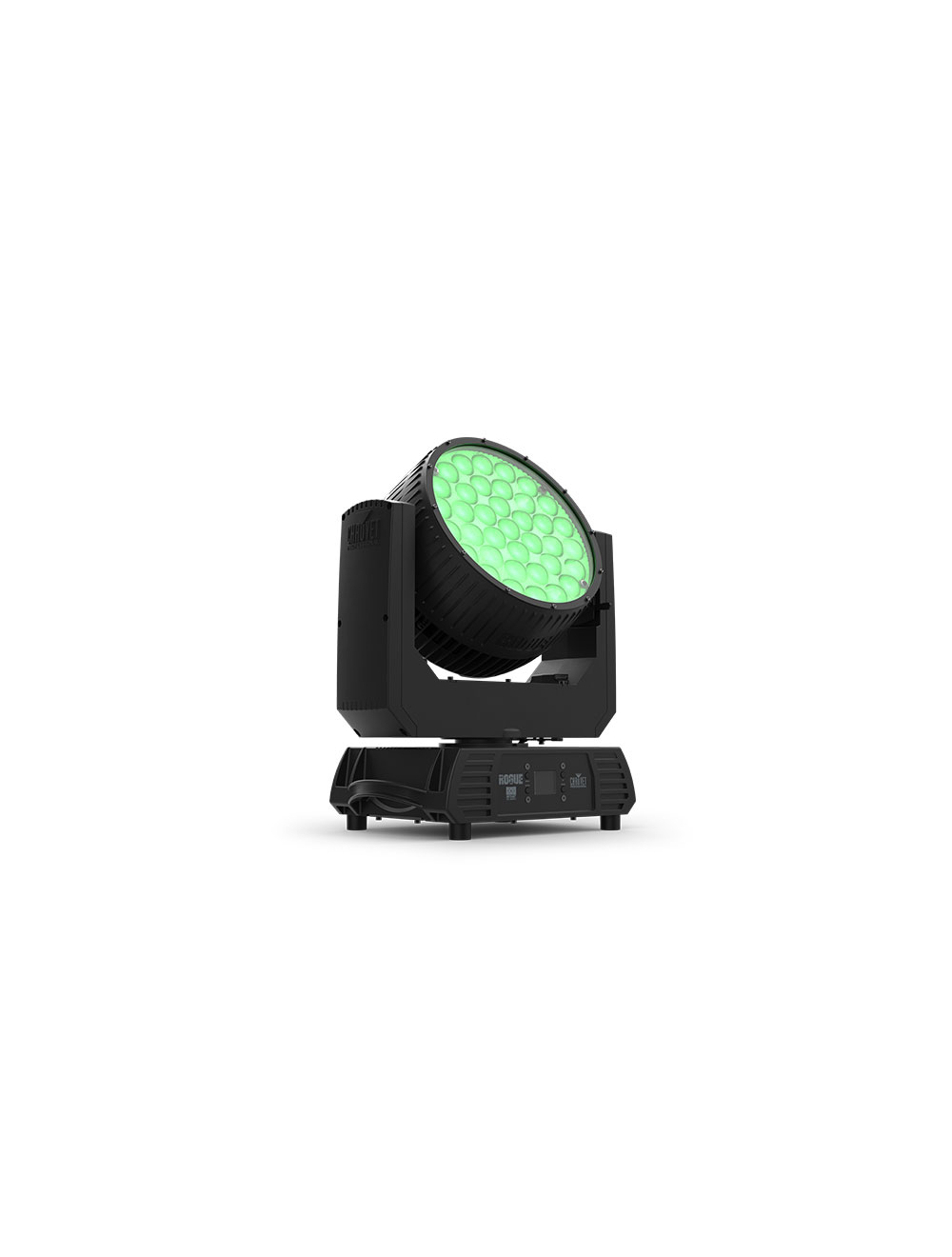

Chauvet Pro ROGUEOUTCAST3XWASH Rogue Outcast 3X Wash 37 LEDs 925 Watt 100-240 Volt Yoke Wash Fixture LED

AT A GLANCE
• Fully-featured IP65 RGBW LED yoke wash fixture with LED zone control, zoom, durable, and lightweight aluminum/magnesium alloy body.  
• 16-bit dimming of master dimmer, as well as individual colors for smooth control of fades 
• 37 RGBW LEDs, 25 W each
• 5-pin DMX input/output connections 
• 9 zones of LED control for pixel mapping control
• Fast/ smooth pan and tilt movement 
• RDM-enabled for remote addressing and trouble shooting 
• Selectable PWM options for camera operation
• Easy-to-read OLED display with simple, effective menu options
• User-selectable calibrated white for 7500 K at full output
• 6 distinct dimming modes for advanced control
• Easy-to-read OLED display with simple and effective menu options 
• Simple and complex DMX channel profiles for programming versatility 
• USB-C port for uploading software 

SPECIFICATIONS
OPTICAL
• Light Source: 37 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 10000 K
• Beam Angle: 9.3° to 33.9°
• Field Angle: 11.6° to 49.5°
• Cutoff angle: 13.1° to 62.6°
• Zoom Angle: 9.3° to 62.6°
• Lumens – Source: 17,000
• Lumens – Output: 13,440
• Illuminance (9.3°): 18,260 lux @ 5 m
• Illuminance (62.6°):1,556 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 180°, 360°, 540° Pan/90°, 180°, 230° Tilt.
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 25 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No

CONSTRUCTION / PHYSICAL
• Dimensions: 20.87" x 15.55" x 20.08"
• Dimensions (shipping size): 23.62x 14.17 x 18.70 in (600 x 360 x 475)
• Weight: 47.84 lb. (21.70 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer.

CONNECTIONS
• Power Connection: Edison (local) plug to Seetronic PowerKON IP65
• Power Input: Seetronic PowerKON IP65
• Power Output: Seetronic PowerKON IP65
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL
• Control Protocol: DMX, RDM
• DMX Channels: 21, 62, 71, 107
• Modes/Personalities: 4 personalities

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 2 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V
• Power and Current: 711 W, 5.98 A @ 120 V, 60 Hz
• Power and Current: 701 W, 3.40 A @ 208 V, 60 Hz
• Power and Current: 695 W, 3.07 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, FCC, FCC, UKCA
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
• Rogue Outcast 3X Wash
• Seetronic PowerKon IP65 power cord
• (2) 140D Omega brackets with mounting hardware

OPTIONAL ACCESSORIES
• Professional Clamps: CTC-50HC, CTC-50HCN 
• Safety Cable: SC-08
• Seetronic IP65 PowerKon cables 
• DMX Cables 
• UPLOAD 08 software uploader
