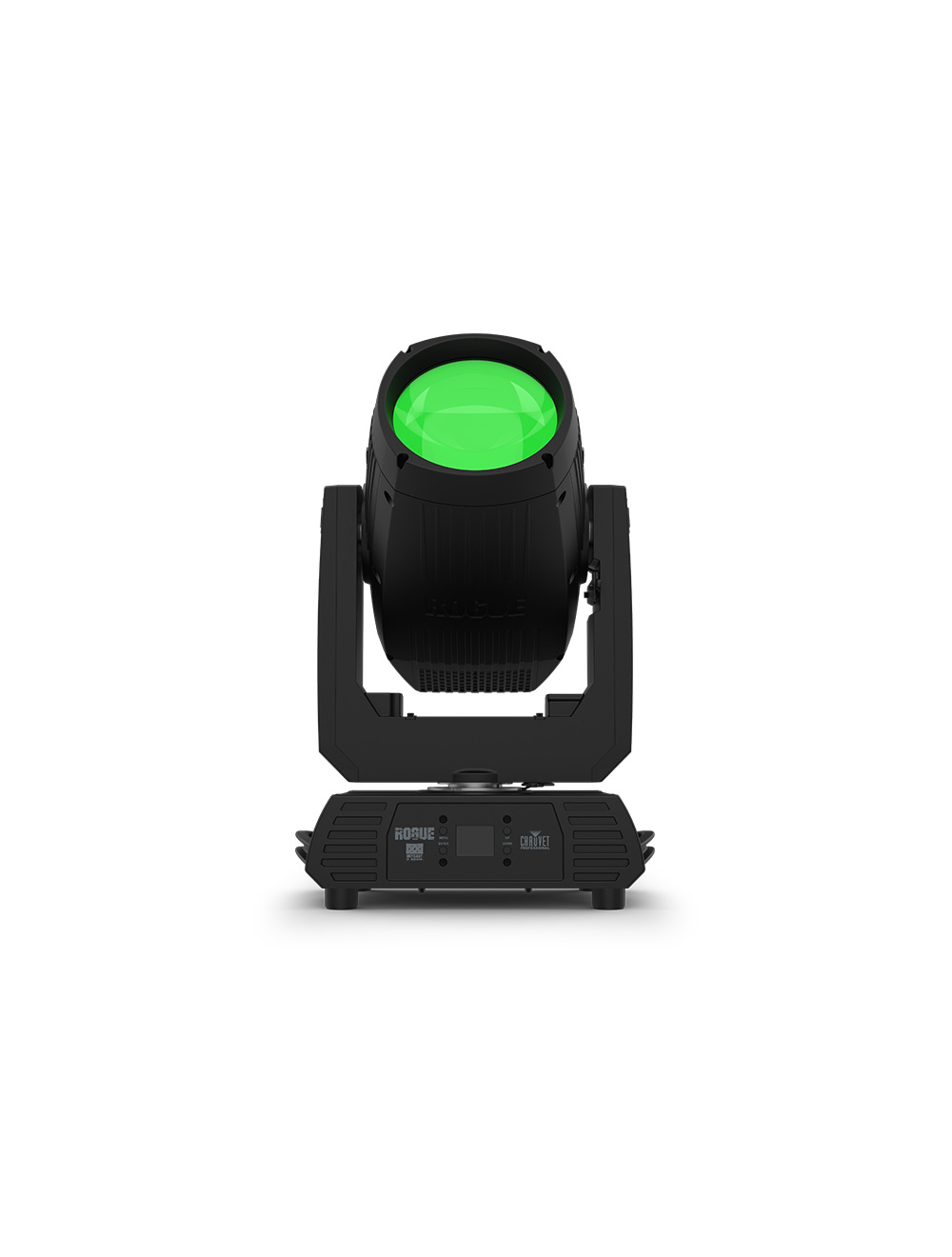

Chauvet Pro ROGUEOUTCAST2BEAM Rogue Outcast 2 Beam NSL Ushio Lamp 300 Watt 100-240 Volt High Powered Beam Fixture

AT A GLANCE
• Fully featured, IP65 rated, high powered Beam fixture with an Ushio 300 W, 8,000 hour life expectancy lamp, 1 gobo wheel, 2 layerable prisms, precision focus, and lightweight aluminum/magnesium housing
• Individually controllable and layerable 5 facet linear and 8 facet round prisms for maximizing visual impact
• Frost for even light distribution
• Tight 0.8° narrow beam angle for focused air effects and no field spill
• 17 static gobos for massive visual effect
• DMX and RDM protocol control
• True 1 compatible power input
• Easy to read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility
• USB-C port for uploading software

SPECIFICATIONS
OPTICAL
• *Test lab conditions. May vary depending on several factors including but not limited to: Environmental conditions, power/voltage, usage patterns, (on/off power cycling), control, and dimming.
• Light Source: 300W NSL Ushio lamp, 8000 K (color temp), 8,000 hours life expectancy
• Color Temperature (at full): 7353 K
• Front lens diameter: 160 mm
• CRI: 75.5
• Beam Angle: 0.8°
• Field Angle: 1.6°
• Cutoff Angle: 2°
• Lumens – Output: 29,130
• Illuminance (total): 204,855 lux @ 15 m

DYNAMIC EFFECTS
• Pan and Tilt: 540°/260°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/260°, 180°, 90° tilt
• Colors: 14 + white, split colors, continuous scroll at variable speeds
• Gobos: 17 + open (17 metal), 17 static, continuous scroll at variable speeds; size: 106 mm (outside), 6 mm (image), 0.6 – 0.8 mm (max. thickness)
• Dimmer: Electronic
• Shutter/Strobe: Motorized
• Focus: Motorized
• Frost: Motorized
• Prism: 5 Facets, motorized, rotating
• Prism: 8 Facets, motorized, rotating
• Move-in-Black: Yes

CONSTRUCTION / PHYSICAL
• Dimensions: 25.98" x 13.78" x 16.93"
• Weight: 48.50 lb (22.00 kg)
• Exterior Color: Black
• Housing Material: Aluminum/Magnesium diecast

CONNECTIONS
• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP rated
• Cable Length (power): 5 ft (1.5 m)

CONTROL
• Control Protocol: DMX, RDM
• DMX Channels: 16 or 18
• Modes/Personalities: 2 personalities (16, 18)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 413 W, 3.51 A @ 120 V, 60 Hz
• Power and Current: 403 W, 2.01 A @ 208 V, 60 Hz
• Power and Current: 404 W, 1.82 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, UKCA
• IP Rating: IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)
• Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
• Maximum Ambient Temperature (ta): 45° C / 113° F

WHAT'S INCLUDED
• Rogue Outcast 2 Beam
• Seetronic Powerkon IP65 power cord
• (2) Omega brackets with mounting hardware

OPTIONAL ACCESSORIES
• Clamps
• IP65 5 pin DMX Cables
• IP65 PowerKon Extension cables
• Flight Case
